2D View
The 2D view allows the selected tuning table to be displayed as a slice. The tuning table can be navigated by using the arrow keys, and the cell value modified by using the pgUp & pgDown keys.

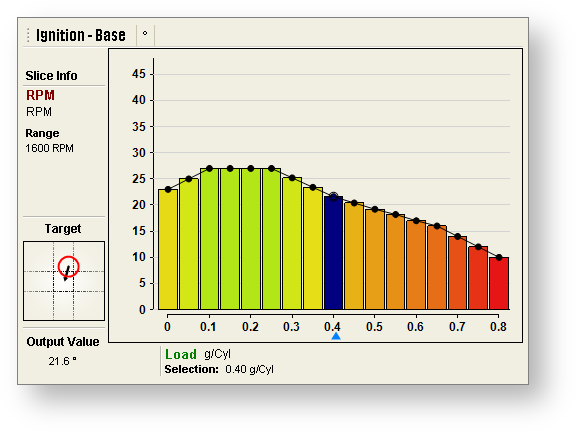

The currently selected cell can be seen below highlighted in blue, with the current engine position indicated by the blue arrow. The slice info can be seen in the left column.
The Output Value shown in the bottom left hand corner of the display indicates the value that this table is producing. This value is linked to this table only and may not represent the final value used by the ECU, as correction tables may affect any final values.
To Index
Related Articles
Text View
The text view allows the selected tuning table to be displayed as a spreadsheet. The tuning table can be navigated by using the arrow keys, and the cell value modified by using the pgUp & pgDown keys. The currently selected cell can be seen below ...3D View
The 3D view allows the selected tuning table to be displayed as a surface. The tuning table can be navigated by using the arrow keys, and the cell value modified by using the pgUp & pgDown keys. The currently selected cell can be seen below ...View
Create New Page Creates a new Tuning Page(Tab) Load Page Loads an existing Tuning Page(Tab) Add Gauge Adds a new Gauge (Display) Full Screen Changes the way ECU Manager is displayed. This mode allows the full screen to be used. Text View Trace ...Target
The Target display allows the user to see the position of the engine in relation to the currently selected tuning table cell. As the current engine position approaches the selected cell, the cursor in the target display will be shown as a red circle. ...All Ranges mode
All ranges mode allows the user to expand their current cell selection across all rows. This can be useful when editing a table for the first time or when an adjustment across rows needs to be made. To enable All ranges use the 'R' key To disable All ...
