2JZ VVT-i Trigger Information

2JZ VVT-i Trigger Information

Sensor Information

Crank/Cam Sensor

The turbo models of this engine all use a Crank Position Sensor and a Cam Position Sensor.   Some aspirated models use a Distributor instead of a crank and cam sensor.


Crank Sensor

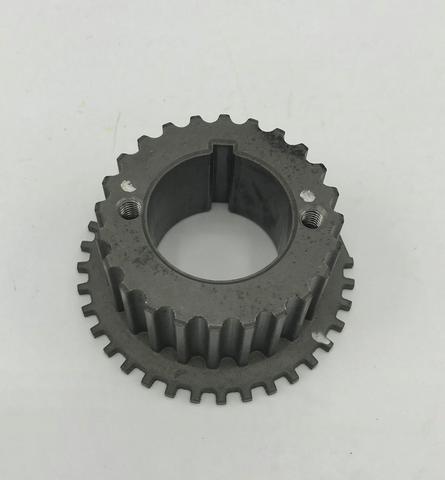

Crank sensor models of the 2JZ and 1JZ use a crank trigger located as part of the timing belt drive gear on the crank with the sensor near the alternator. VVTi models have a 36-2 (36 teeth with 2 missing teeth.

36-2 VVTi

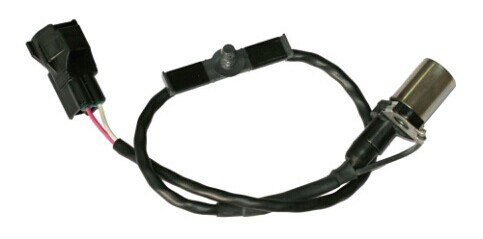

2JZ Crank Sensor



Pin
Description
Haltech Connection (Trigger 4-core)
1Trigger +
Yellow
2Trigger -
Green
(if using OEM Toyota wiring, pin 2 should go to Signal Ground)




Cam Sensor

The VVTi models use a single Reluctor Cam Position Sensor which has a 3x tooth pickup.

2JZ Cam Sensor



Pin
Description
Haltech Connection (Home 4-core)
1Home +
Yellow
2Home -
Green
(if using OEM Toyota wiring, pin 2 should go to Signal Ground)



Distributor

A 3x Reluctor trigger system is used on the 2JZ-GE engine.  This has a 24x tooth pickup with a single Reluctor pickup (NE), and has a second 1-tooth pickup that has 2x separate sensors (G1 and G2) with only one of the pickups required for Haltech use.  All sensors use a common shared wire back to the ECU (G-).

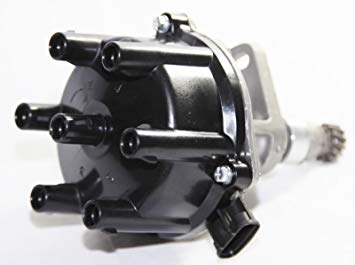

2JZ-GE Distributor

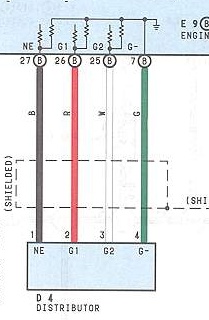

OEM Wiring Diagram


2JZ-GE Distributor Wiring
OEM Connection
Description
Haltech Connection
Pin 1   NE (24x) Black
Trigger +
Yellow(Trigger 4-core)
Pin 2   G1 (1x) Red
Home +
Yellow (Home 4-core)
Pin 3   G2 (1x) White
No Connection
---
Pin 4   G- Green
Signal Ground
Blue (Trigger 4-core)

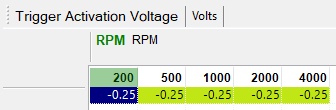

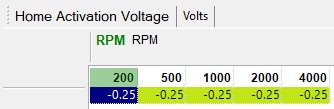

This model requires the Haltech Trigger and Home Grounds to be Enabled


Trigger Configuration - VVT
