3-2 Control Duty Cycle

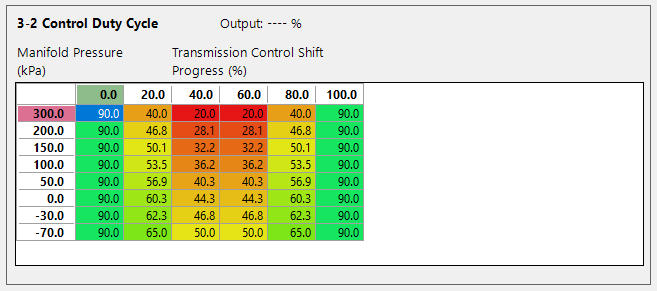

3-2 Control Duty Cycle Table
This table is only available if the Transmission Type in Transmission is set to GM 4L60E.
This table controls the duty cycly of a solenoid that is unique to the 4L60e, and is only utilised to smooth the downshift from 3rd gear to 2nd.
The ECU is hard-coded to output 0% duty cycle in 1st gear and 90% duty cycle in other gears to match factory behaviour.
During the down-shift from 3rd to 2nd gear, the duty cycle follows the 3-2 Control Duty Cycle table. It is recommended to import this table from a provided base map.
