3D View

3D View

The 3D view allows the selected tuning table to be displayed as a surface. The tuning table can be navigated by using the arrow keys, and the cell value modified by using the pgUp & pgDown keys.

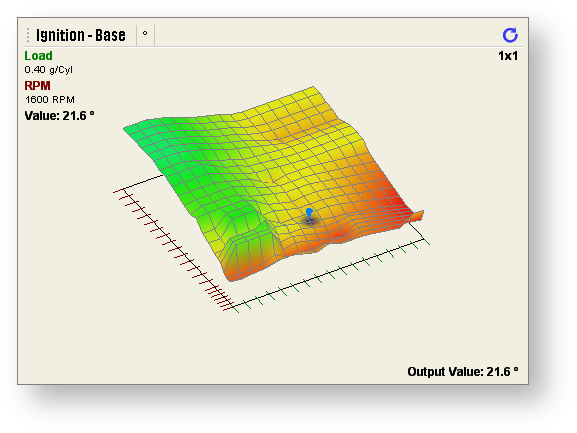

The currently selected cell can be seen below highlighted in blue, with the current engine position indicated by the blue arrow. The current selection size is indicated in the top right hand corner, with the currently selected cells value shown on the left.

The Output Value shown in the bottom right of the display indicates the value that this table is producing. This value is linked to this table only and may not represent the final value used by the ECU, as correction tables may affect any final values.

The 3D table can be rotated to provide a better angle of the surface by using the left mouse button. The surface can be reset back to the default angle at any time by clicking on the return to default angle button located in the top right hand corner.
