Alternator Control Target Voltage

Alternator Control Target Voltage





Target

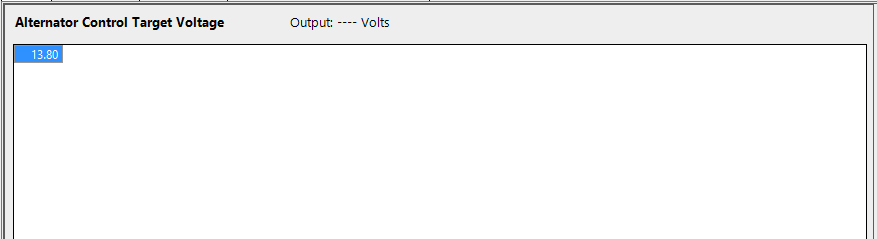

The Target Voltage that you wish to have the Alternator Control aim for. Typically this will be 13.8 to 14.4V. Too low will not charge the battery, and too high can cause battery damage.
