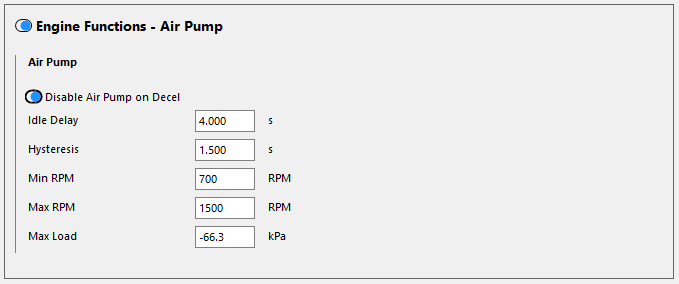

Air Pump

Air Pump

Air Pump



Disable Air Pump on Decel - When this is ticked, the air pump will be disabled when the car is decellerating

Idle Delay - The amount of time used to allow idle to stabilise before the air pump increases the load on the engine

Hysteresis - The amount of time after the enable conditions are met, before the air pump will be enabled.

Min RPM - The minimum RPM required to enable the air pump

Max RPM - The maximum RPM allowed to keep the air pump enabled. RPM above this will disable the air pump.

Max Load - The maximum Load allowed to keep the air pump enabled. Load values above this will disable the air pump.
