Air Pump
This Function controls the Air Pump.

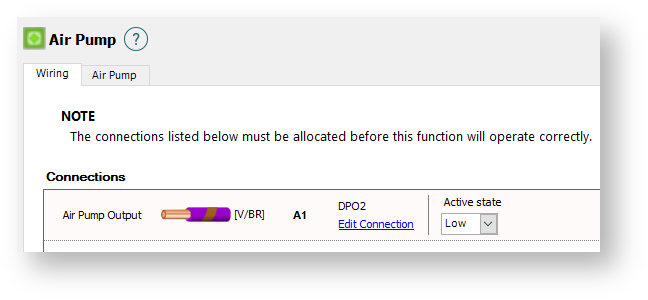

Wiring Tab
Connections
Air Pump Output
Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for the Air Pump.
Active State
Controls the whether the output is normal or inverted. Low will ground the output wire when the output is set to be On. Setting to High will invert this signal, with the output wire being grounded when the output is set to be Off, and not grounded when it is set to be On. (Default = Low)
Air Pump Tab
Disable Air Pump on Decel
When this is ticked, the air pum p will be disabled when the car is decellerating
Idle Delay
The amount of time used to allow idle to stabilise before the air pump increases the load on the engine
Hysteresis
The amount of time after the enable conditions are met, before the air pump will be enabled.
Min RPM
The minimum RPM required to enable the air pump
Max RPM
The maximum RPM allowed to keep the air pump enabled. RPM above this will disable the air pump.
Max Load
The maximum Load allowed to keep the air pump enabled. Load values above this will disable the air pump.
