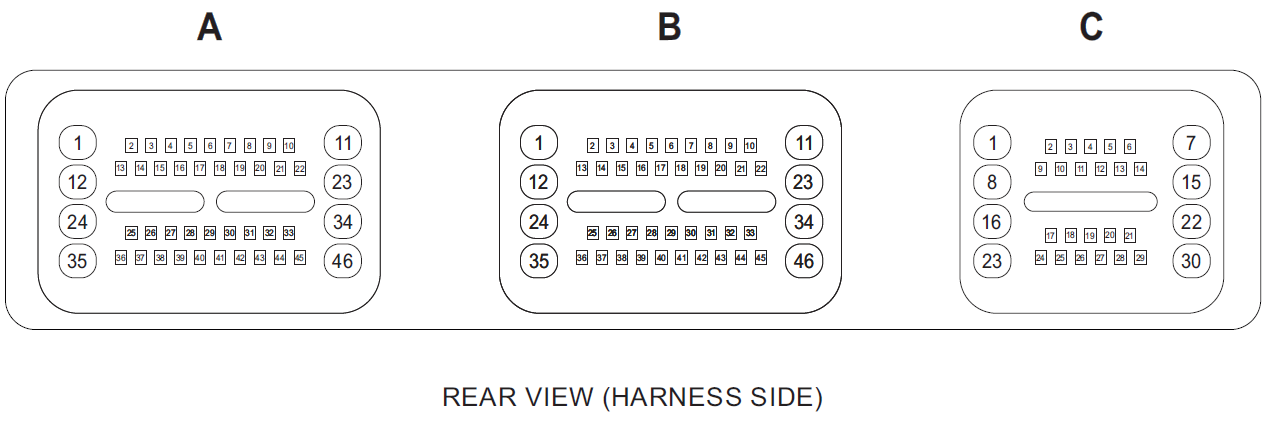

BA Pinout Information
| Pin | Function |
|---|---|
| A01 | - |
| A02 | PCS - Power Control Solenoid (4 Speed Auto - Not Currently Supported) |
| A03 | Injector 6 Output |
| A04 | Injector 4 Output |
| A05 | Cam Control - Intake Solenoid |
| A06 | Cam Control - Exhaust Solenoid |
| A07 | Injector 2 Output |
| A08 | Injector 5 Output |
| A09 | Narrowband Heater 1 Output (Pre-Cat) |
| A10 | - |
| A11 | - |
| A12 | Ignition 3 Output |
| A13 | Oil Temperature Sensor Input |
| A14 | Injector 1 Output |
| A15 | Injector 3 Output |
| A16 | DBW TPS (Throttle Position Sensor) 2 Input |
| A17 | MCS 1 (4 Speed Auto - Not Currently Supported) |
| A18 | MCS 2 (4 Speed Auto - Not Currently Supported) |
| A19 | GSS1 - Shift Solenoid 1 (4 Speed Auto - Not Currently Supported) |
| A20 | GSS2 - Shift Solenoid 2 (4 Speed Auto - Not Currently Supported) |
| A21 | +5V DC Sensor Supply |
| A22 | Signal Ground for Input Sensors |
| A23 | Ignition 6 Ouput |
| A24 | Ignition 5 Ouput |
| A25 | Intake Air Temperature Sensor Input |
| A26 | Oil Pressure Switch Input |
| A27 | DBW Motor + |
| A28 | DBW Motor - |
| A29 | Knock Sensor Signal 1 |
| A30 | Crankshaft Position Sensor (+) |
| A31 | Intake Camshaft Position Sensor (Home) |
| A32 | Signal Ground for Input Sensors |
| A33 | Exhaust Camshaft Position Sensor |
| A34 | Ignition 4 Output |
| A35 | Ignition 1 Ouput |
| A36 | +5V DC Sensor Supply |
| A37 | TFT - Transmission Fluid Temperature Sensor (4 Speed Auto - Not Currently Supported) |
| A38 | Manifold Pressure Input |
| A39 | VPS - Variable Pressure Solenoid (4 Speed Auto - Not Currently Supported) |
| A40 | Signal Ground for Input Sensors |
| A41 | Crankshaft Position Sensor (-) |
| A42 | - |
| A43 | LUS - Lock Up Solenoid (4 Speed Auto - Not Currently Supported) |
| A44 | DBW TPS (Throttle Position Sensor) 1 Input |
| A45 | Coolant Temperature Sensor Input |
| A46 | Ignition 2 Output |
| Pin | Function |
|---|---|
| B01 | Battery Negative |
| B02 | A/C Control Output |
| B03 | Dual Intake Runner Output (NON Turbo Only) |
| B04 | Starter Motor Relay Ouput |
| B05 | Clutch Switch Input (M/T Only) |
| B06 | Collision Detection Input |
| B07 | Vehicle Speed - Driveshaft Input (Vehicles Without ABS) |
| B08 | Narrowband Sensor 1 Input (Pre-Cat) |
| B09 | +12V Ignition Switch |
| B10 | Battery Negative |
| B11 | Battery Negative |
| B12 | Battery Negative |
| B13 | CAN High |
| B14 | CAN Low |
| B15 | Air Con Pressure Input |
| B16 | Cruise Control Input |
| B17 | DBW APP 1 Input |
| B18 | DBW APP 2 Input |
| B19 | DBW APP 3 Input (Not Used) |
| B20 | +5V DC Sensor Supply |
| B21 | Signal Ground for Input Sensors |
| B22 | Evaporative Emissions Control Output |
| B23 | Battery Negative |
| B24 | Thermofan 1 Output |
| B25 | Brake Pedal Switch 1 Input |
| B26 | - |
| B27 | Fuel Pump Output |
| B28 | +5V DC Sensor Supply |
| B29 | Signal Ground for Input Sensors |
| B30 | Reverse Switch Input |
| B31 | Power Steering Switch Input |
| B32 | Brake Pedal Switch 2 Input |
| B33 | Signal Ground for Input Sensors |
| B34 | +13.8V ECU Power |
| B35 | Thermofan 2 Output |
| B36 | Vehicle Speed Output |
| B37 | Engine Control Relay |
| B38 | Start From Ignition Switch |
| B39 | - |
| B40 | +12V DC Permanent Battery Power |
| B41 | Transmission Control Range Switch Input 1 (4 Speed Auto - Not Currently Supported) |
| B42 | Reverse Lockout Output |
| B43 | Transmission Control Range Switch Input 2 (4 Speed Auto - Not Currently Supported) |
| B44 | - |
| B45 | +5V DC Sensor Supply |
| B46 | +13.8V ECU Power |
| Pin | Function |
|---|---|
| C01 | Battery Negative |
| C02 | Boost Pressure Input (Turbo Models Only) |
| C03 | CAN High |
| C04 | CAN Low |
| C05 | - |
| C06 | - |
| C07 | - |
| C08 | - |
| C09 | - |
| C10 | - |
| C11 | - |
| C12 | - |
| C13 | - |
| C14 | - |
| C15 | - |
| C16 | - |
| C17 | - |
| C18 | O2 Sensor 2 (Post-Cat) (Not Used) |
| C19 | O2 Heater Control 2 (Post-Cat) (Not Used) |
| C20 | - |
| C21 | Boost Control Output (Turbo Models Only) |
| C22 | - |
| C23 | +13.8V ECU Power |
| C24 | - |
| C25 | - |
| C26 | - |
| C27 | - |
| C28 | - |
| C29 | - |
| C30 | +5V DC Sensor Supply |
