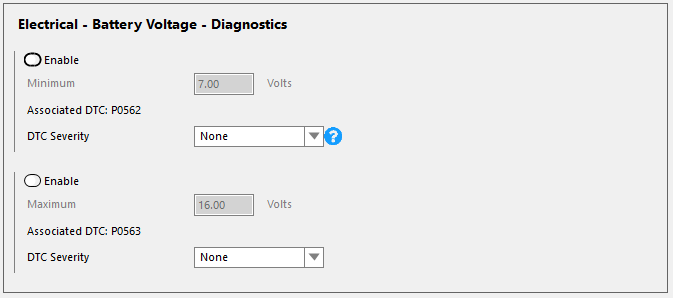

Battery Voltage Diagnostics



Minimum - When enabled allows detection of battery conditions that could indicate a sudden drop in voltage. This will activate the DTC P0562. If the Engine Protection function is active a DTC Severity level can be selected for this condition if desired.

Maximum - When enabled allows detection of battery conditions that could indicate a sudden spike in voltage. This will activate the DTC P0563. If the Engine Protection function is active a DTC Severity level can be selected for this condition if desired.
