Battery Light

Battery Light

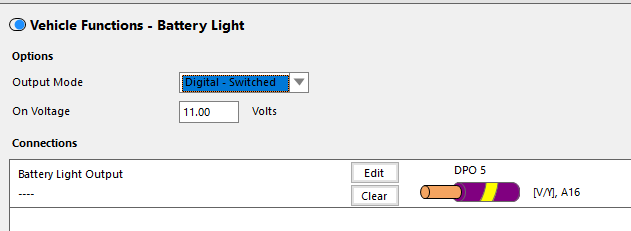

Battery Light Page



Options

Output Mode

Digital - Switched
Select a DPO (Digital Pulsed Output) to activate the battery light

CAN Output
Where supported will activate a CAN connected battery light

On Voltage

Sets the voltage at which if the battery voltage drops below the battery light will

Connections

Battery Light Output

Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for the Battery.
