Condition Settings

Condition Settings

Condition Settings

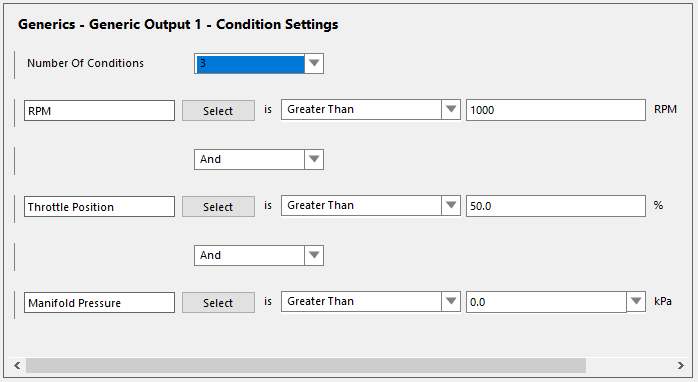

This node sets the conditions (up to three) which when met will turn the Generic Output on. Conditional Settings are only available if the Output is a State output.

Number of Conditions - Selects the number of channels, up to 3, that will be used in the calculation of the output state of your Generic Output.
Select - Select the ECU channel to be used.
Maths - A selection of Equal To, Not Equal To, Greater Than, Less Than, Greater Than Or Equal To, Less Than Or Equal To that is to be used.
Value - The value the maths must meet to enable the condition.
And/Or - Allows conditions to be combined so that multiple conditions must be met to enable the new Generic Output.
