Conditional Trigger

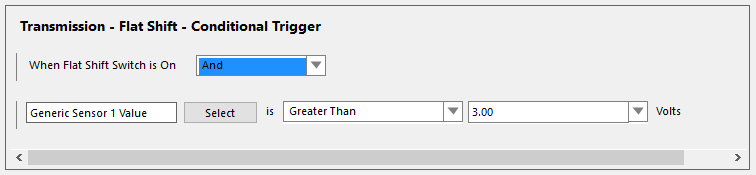

Flat Shift Conditional Trigger

When Flat Shift Switch is On - And/Or allows conditions to be combined so that multiple conditions must be met to enable the Flat Shift.

Select - Select the ECU channel to be used.

Maths - A selection of Equal To, Not Equal To, Greater Than, Less Than, Greater Than Or Equal To, Less Than Or Equal To that is to be used.

Value - The value the maths must meet to enable the condition.
