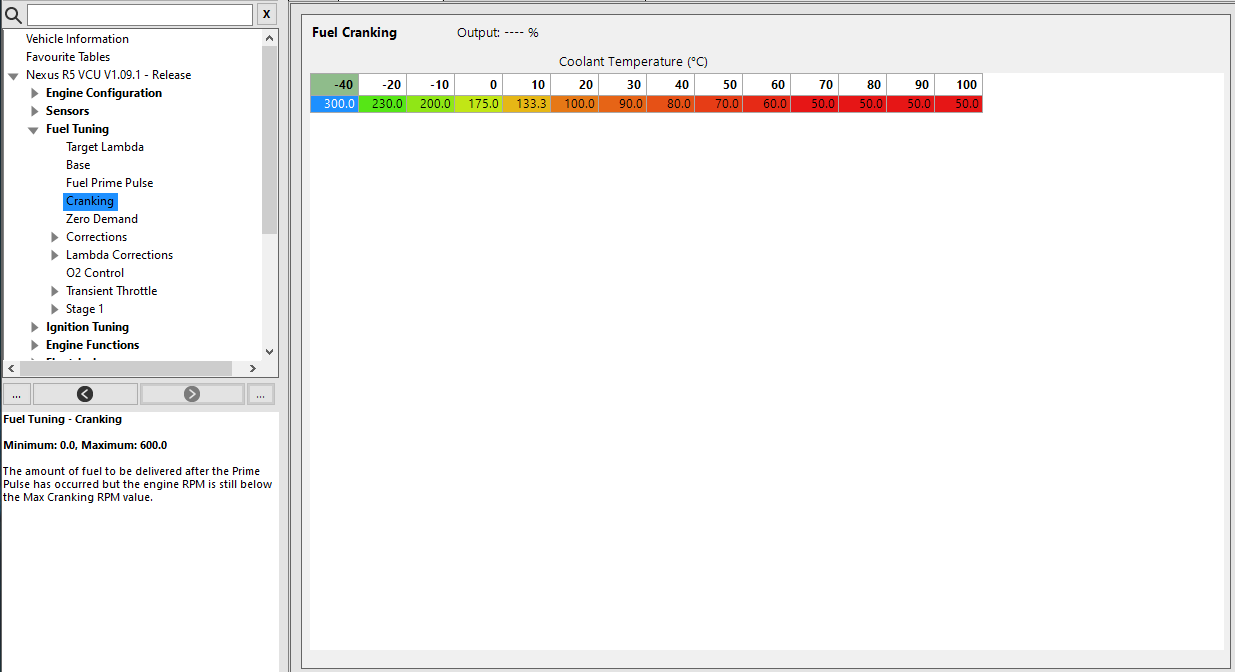

Fuel Cranking

The cranking fuel table is used to deliver a volume of fuel after the prime pulse but while the engine is below the Max Cranking RPM. This aids in providing the engine with additional fuel that may be required to star the engine after the prime pulse.

This table will have different units depending on your Tuning Method.
