This mid 1980s Toyota Cresta has all the markings of a Mighty Car Mods project: it’s unique, it’s full of clever mods and, of course, it’s maaaad!

Haltech_Cresta22

For those not familiar with the build we highly recommend watching the 10 Second Sleeper build video on the Mighty Car Mods YouTube Channel.

Haltech_Cresta10

Marty and Moog purchased the car in Japan and shipped it over to Australia with the intent of turning it into a 10-second sleeper.

Haltech_Cresta20

Right from the start, the guys knew they could not achieve their goal ET with the dated, factory power plant. It was quickly replaced with an Australian-made Ford inline six Barra engine.

Strong, tough and reliable, the Barra proved to be a smart choice. With a reputation for creating serious horsepower on stock internals and parts readily (and cheaply) available, squeezing 600hp out of this mildly modified 4L six was not difficult.

Haltech_Cresta15

A factory Ford FG throttle body feeds the compressed air into a custom billet inlet manifold and runners.

Haltech_Cresta17

Boost comes via an externally gated Garrett GTW3884.

Haltech_Cresta18

Injectors have been upgraded to DW 1500cc units. The factory engine harness was retained with just the ECU ends cut and repinned to connect with the Elite ECU.

Haltech_Cresta02

Nothing says “1980s prestige” like a maroon velour interior.

Haltech_Cresta03

Given the car’s aim to run 10 second quarters a full roll cage was required to protect its occupants.

Haltech_Cresta05

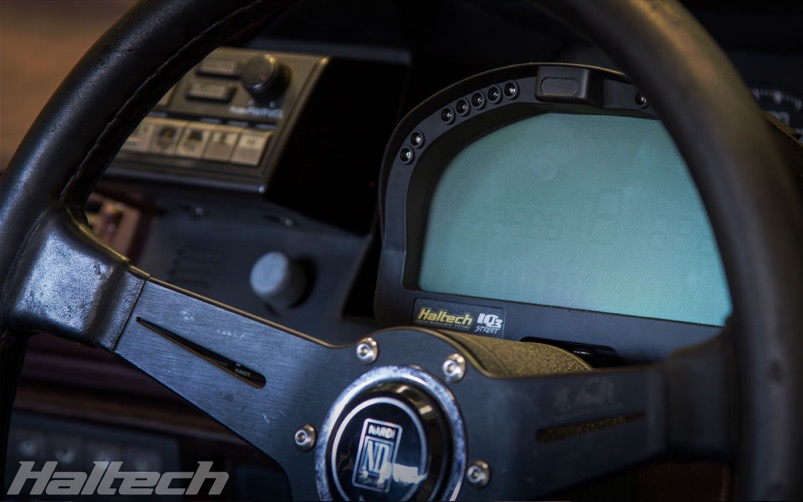

Haltech’s IQ3 Street dash displays all the vital engine information.

Haltech_Cresta12

The power is transferred from the engine to the rear diff via a modified Hughes Turbo 400 transmission. A classy billet shifter replaced an ageing, plastic factory item.

Hidden under the dash panel is Haltech’s Elite 2500T ECU. Aside from controlling the injection, ignition and boost, the Elite 2500T also employs Advanced Torque Management to help the car get down the track faster and more reliably.

Haltech_Cresta11

Advanced Torque Management (ATM) works by reading a driveshaft RPM sensor signal and comparing it against a pre-programmed driveshaft curve. If the driveshaft RPM goes above or below the target driveshaft RPM, the ECU immediately adjusts the tune to compensate and bring the driveshaft RPM back to its preset target.

Haltech_Cresta13

The Elite is connected to a dashboard-mounted rotary trim switch which allows the driver to choose from a host of pre-programmed driveshaft curves, boost curves or throttle angles. With this switch, the driver can select the correct power delivery curve for the track conditions.

Haltech_Cresta07

The boot houses a fuel cell and three DW 350L/h fuel pumps.

Haltech_Cresta27

To date, the guys have managed to get a 9.97@138mph pass out of this package, which is both impressive and inspiring given they’ve used an engine readily available from wreckers for less than $1500! All other parts and labour notwithstanding this is still a great testimony for the venerable Aussie inline six.
