Currently used cell

Currently used cell

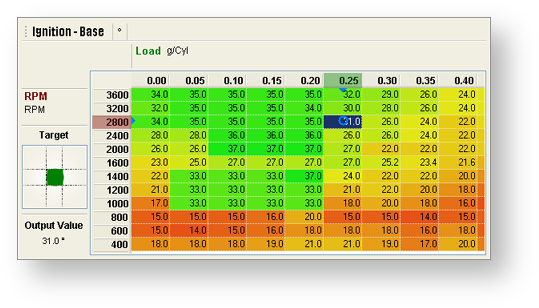

When the engine is running, the ECU will be using values from the tuning table. The value currently being used by the ECU is indicated by the reference marker.



At any point, you can align your currently selected cell/s with the cell/s the ECU is using. This can be done using the spacebar.
