Datalog Switch
Datalog Switch
A Datalogging Switch input can be used with your ECU as the activation method to start and stop the internal memory datalogging.

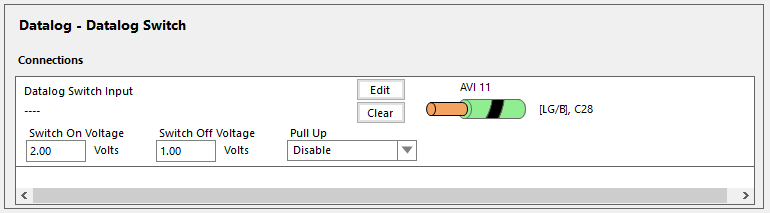

This node configures the input to be used for the datalogging switch. An SPI (Synchronised Pulsed Input) or an AVI (Analogue Voltage Input) can be used. A CAN Keypad button may also be used.
