Drive By Wire Wiring

Drive By Wire Wiring

Wiring

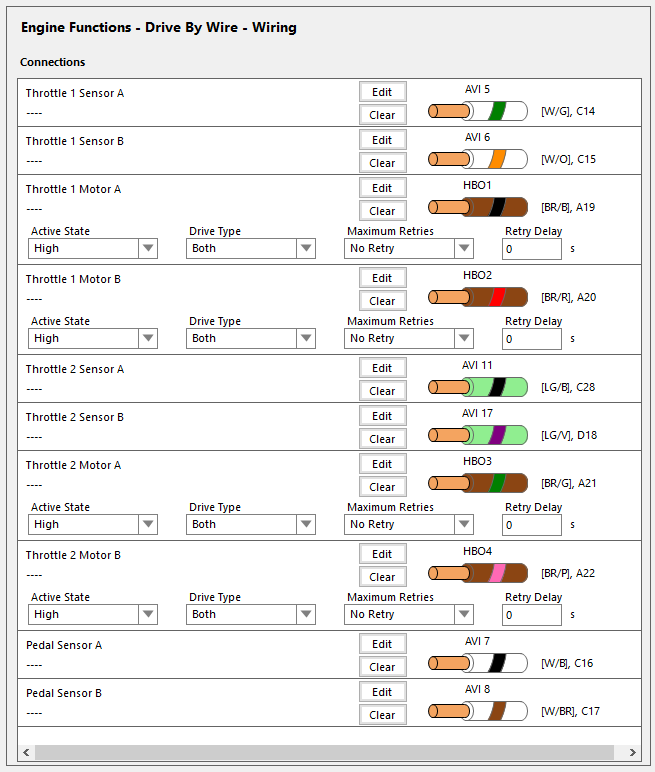

Connections

Throttle Motor Outputs - HBOs must be used for the throttle motor outputs. It does not matter which HBOs are paired with one another on a throttle motor. The polarity of the wires does not matter either, and motor direction is determined by the TPS Calibration process.

APP Inputs - Select an available AVI (Analogue Voltage Input) that will be connected for each APP input.

TPS Inputs - Select an available AVI (Analogue Voltage Input) that will be connected for each TPS input.
