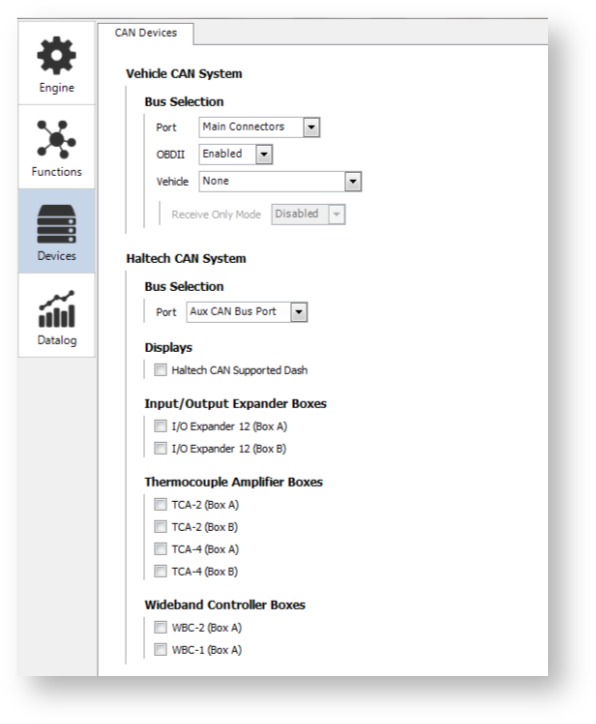

You will find the Device tab in the Main Setup Menu (found by pressing F4 or by clicking the Setup). This tab allows you to turn on and assign CAN inputs or outputs to either the Aux CAN Bus Port or to the Main connectors on the Elite ECU.


Page Contents



Bus Selection

Port

Main Connectors

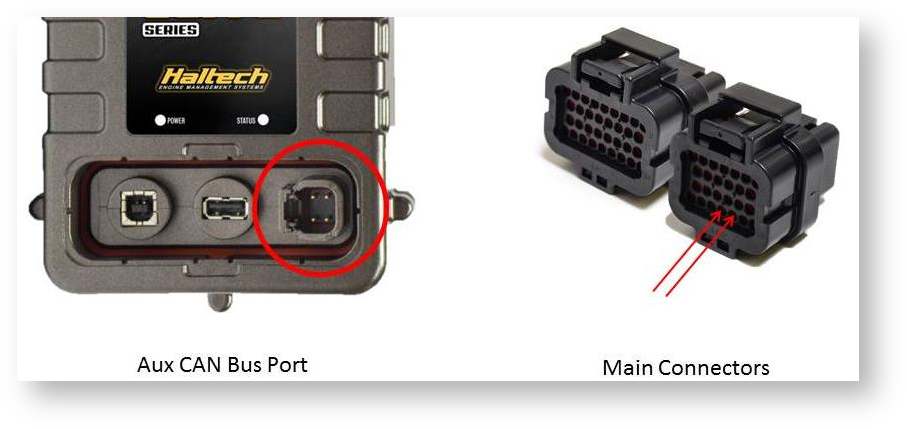

The Main Connectors can output Haltech CAN Channels to run any type of CAN configurable Dash or Haltech CAN device. The CAN High and CAN Low Wires will need to be terminated with Haltech ECU Pins then run into pins B23 and B24 (Small Connector). One of the major benefits of running the pins into the Main Connector pins, is being able to leave the Pocket Cover in place to keep the Elite ECU water proof.

Aux CAN Bus Port

The Auxiliary CAN Bus Port has a 4 pin DTM4 Series Connector (included) that can be terminated to suit the Haltech CAN device(s) that is being used.

The Devices Tab allows you to select one of the Vehicle Bus listings that are able to be connected to Elite series ECU as well as one of the supported Vehicle's CAN bus system.

OBDII

The Haltech can output OBDII data on the Vehicle CAN system. This allows most scan tools, plus third party applications such as iPhone/Android OBDII displays, to display diagnostic trouble codes and sensor data. This data output can be disabled if desired.

Haltech Elite Series ECU's support the following data channels as per the international OBD-II standards.

Request Diagnostic Data

PID

DESCRIPTION

PREREQUISITE

0x05

Engine Coolant Temperature

Sensor Enabled

0x06

Short Term Fuel Trim Bank 1

O2 Control Bank 1

0x07

Long Term Fuel Trim Bank 1

O2 Control Bank 1 with long term.

0x08

Short Term Fuel Trim Bank 2

O2 Control Bank 2

0x09

Long Term Fuel Trim Bank 2

O2 Control Bank 2 with long term.

0x0A

Fuel Rail Pressure (Gague)

Sensor Enabled

0x0B

Intake Manifold Pressure (Absolute)

Sensor Enabled

0x0C

Engine RPM

None

0x0D

Vehicle Speed

Sensor Enabled

0x0E

Ignition Timing Advance

None

0x0F

Intake Air Temperature

Sensor Enabled or calculated air temperature enabled.

0x10

Air Flow Rate

MAF 1 or MAF 2 enabled

0x11

ABS Throttle Position

TPS or DBW

0x14

Narrow Band 1 - Bank 1 Sensor 1

Sensor Enabled

0x18

Narrow Band 2 - Bank 2 Sensor 1

Sensor Enabled

0x1C

OBD Requirement

None

0x1F

Run Time Since Engine Start

None

0x26

Wideband Sensor 1 - Bank 1 Sensor 2

Wideband sensor 1 Enabled

0x27

Wideband Sensor 2 - Bank 1 Sensor 3

Wideband sensor 2 Enabled

0x28

Wideband Sensor 3 - Bank 2 Sensor 2

Wideband sensor 3 Enabled

0x29

Wideband Sensor 4 - Bank 2 Sensor 3

Wideband sensor 4 Enabled

0x2E

Commanded Evaporative Purge

Evaporative Control enabled

0x2F

Fuel Tank Level Input

Sensor Enabled

0x33

Barometric Pressure (Absolute)

Sensor Enabled

0x3C

Catalyst Temperature 1

EGT Sensor 1 Enabled

0x3D

Catalyst Temperature 2

EGT Sensor 2 Enabled

0x3E

Catalyst Temperature 3

EGT Sensor 3 Enabled

0x3F

Catalyst Temperature 4

EGT Sensor 4 Enabled

0x42

Control Module Voltage

None

0x44

Fuel-Air Commanded Equivalence Ratio

VE or O2 Control enabled

0x52

Ethanol Fuel Percentage

Sensor Enabled

0x5C

Engine Oil Temperature

Sensor Enabled

Request Vehicle Information

PID

DESCRIPTION

Notes

0x02

VIN Number

None

0x04

Calibration Identification

Should not be used by customers

0x0A

Electronic Control Unit Name

None

Vehicle

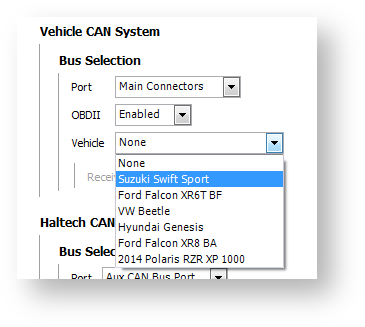

The Elite is capable of replicating factory CAN data of select vehicles. Select your vehicle from this list if it is available.

Receive Only Mode

When installing the Elite ECU in parallel with the factory ECU (eg. to retain automatic transmission control), you may need to set the Elite to receive-only mode. This prevents both ECU's from talking at once, which can cause issues with CAN devices.

Displays

If you have a Haltech CAN Supported Dash it will need to be enabled in this page by clicking the Tick box for the: Haltech CAN supported dash.
If your Haltech CAN supported Dash is only showing zero's, please contact Haltech Technical support as your Dash may need to be updated.

Input/ Output Expander Boxes

The Input/Output Expander Boxes (I/O Box) can be enabled by clicking the tick box for I/O Expander (Box A) or I/O Expander (Box B) depending on which box you have connected to the CAN PORT or Haltech CAN Hub. Once you have ticked the I/O box that is appropriate to your setup, you will be able to select a new range of inputs and outputs. You will see these listed as IOA or IOB and they will be seen in the I/O Resource report on the functions page

Thermocouple Amplifier Boxes

The Haltech Thermocouple Amplifier Boxes (TCA) can be enabled through this Tab as well.
There are 4 different variants of Thermocouple Boxes that can be connected into the Haltech Elite ECU, so it's important to check what Thermocouple Amplifier box or Boxes you have.
TCA 2 (Box A) 2 channel Thermocouple Amplifier
TCA 2 (Box B) 2 channel Thermocouple Amplifier
TCA 4 (Box A) 4 Channel thermocouple Amplifier
TCA 4 (Box B) 4 Channel thermocouple Amplifier
Once the Thermocouple Probes are plugged into the TCA Amplifier, you will then be able to assign the sensors to the appropriate inputs in the functions Tab.

Wideband Controller Boxes

The Wideband Controller Boxes (WBC) can be enabled by ticking the WBC-1 or WBC-2 Boxes.
The Single Channel WBC will come with one O2 Sensor that can be assigned to the inputs.
The Dual Channel will have two O2 sensors that can be assigned to the inputs
The WBC will then be enabled and ready for the sensor (s) to be able to be assigned in the functions tab. This type of sensor will then be able to be assigned in the O2 Control as well.

Race Expansion Modules

The Race Expansion Modules (REM) can be enabled by ticking the Haltech Race Expansion Module box.
Auxiliary inputs and outputs are enabled by ticking the Enable Auxiliary Inputs and Outputs box.
