Duty Cycle (O2 Inactive)

Duty Cycle (O2 Inactive)

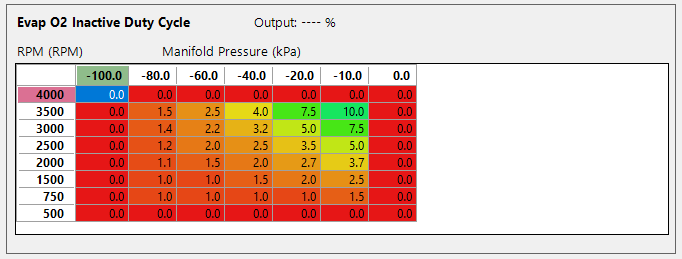

EVAP O2 Inactive Duty Cycle Table



This table is active when there is no closed loop control of the fuel system in active use. It setsthe duty cycle for the EVAP Solenoid under these conditions. It is normal to use lower duty values in the O2 Inactive table compared with higher values in the O2 Active table.
