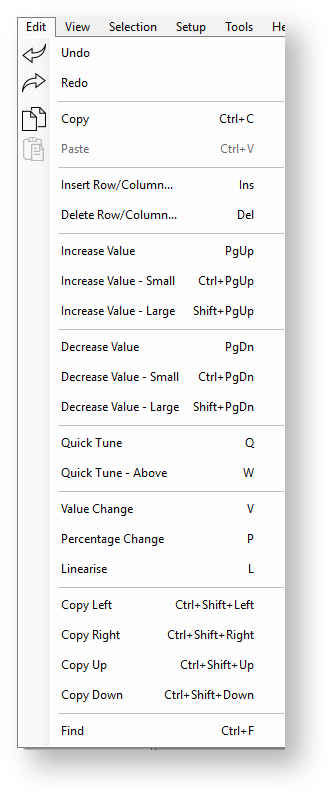

Edit

Edit

Undo

Removes the last change made to a tuning table.

Redo

Restores the last Undo made to a tuning table.

Copy

Copies the currently selected values.

Paste

Pastes the copied values.

Insert Row/Column

Inserts a new column into selected table

Delete Row/Column

Deletes selected column(s) from selected table

Increase Value

Increases the value in the selected cell

Increase Value - Small

Increases the value in the selected cell by a small amount

Increase Value - Large

Increases the value in the selected cell by a large amount

Decrease Value

Decreases the value in the selected cell

Decrease Value- Small

Decreases the value in the selected cell by a small amount

Decrease Value- Large

Decreases the value in the selected cell by a large amount

Quick Tune

Performs Quick Tune Function on the cell currently used by the ECU. Only available when a Wideband O2 Sensor is enabled.

Quick Tune - Above

Performs Quick Tune Function on the cell currently used by the ECU as well as the cells higher in RPM and Load. Only available when a Wideband O2 Sensor is enabled.

Value Change

Replaces the value in the selected cell with a new value chosen

Percentage Change

Percentage increase or decrease the selected cells

Linearise

Linearises values across selected cells

Copy Left

Copies the current Tuning Table value to an adjacent cell to the left

Copy Up

Copies the current Tuning Table value to an adjacent cell above

Copy Down

Copies the current Tuning Table value to an adjacent cell below

Find

Opens a search bar
