Electrical

Electrical

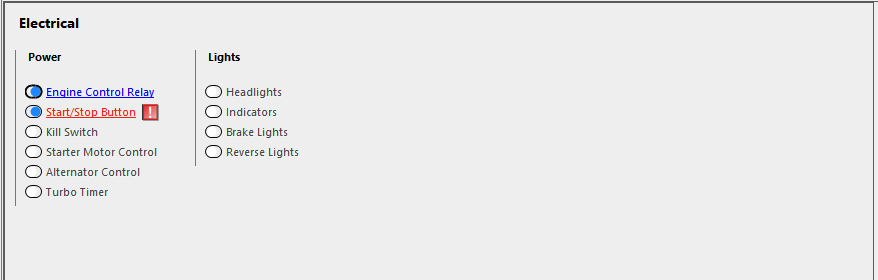

This page controls the engine startup and shutdown features such as Ignition switch, Engine Control Relay, Starter Motor Relay, as well as vehicle lights control.

Function names can be clicked on to navigate to that function's relevant tree node.

Any errors will be highlighted in red for your attention.
