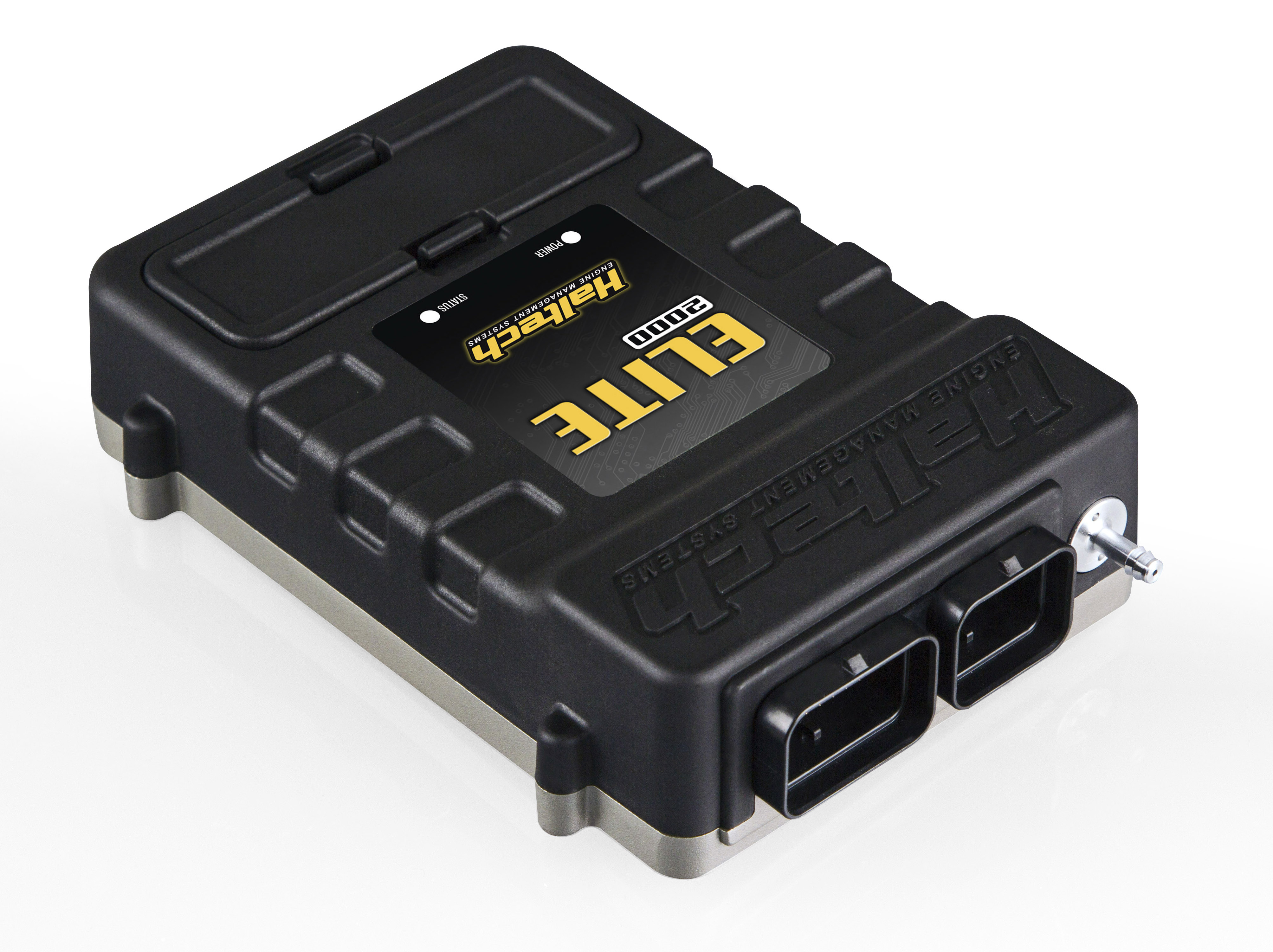

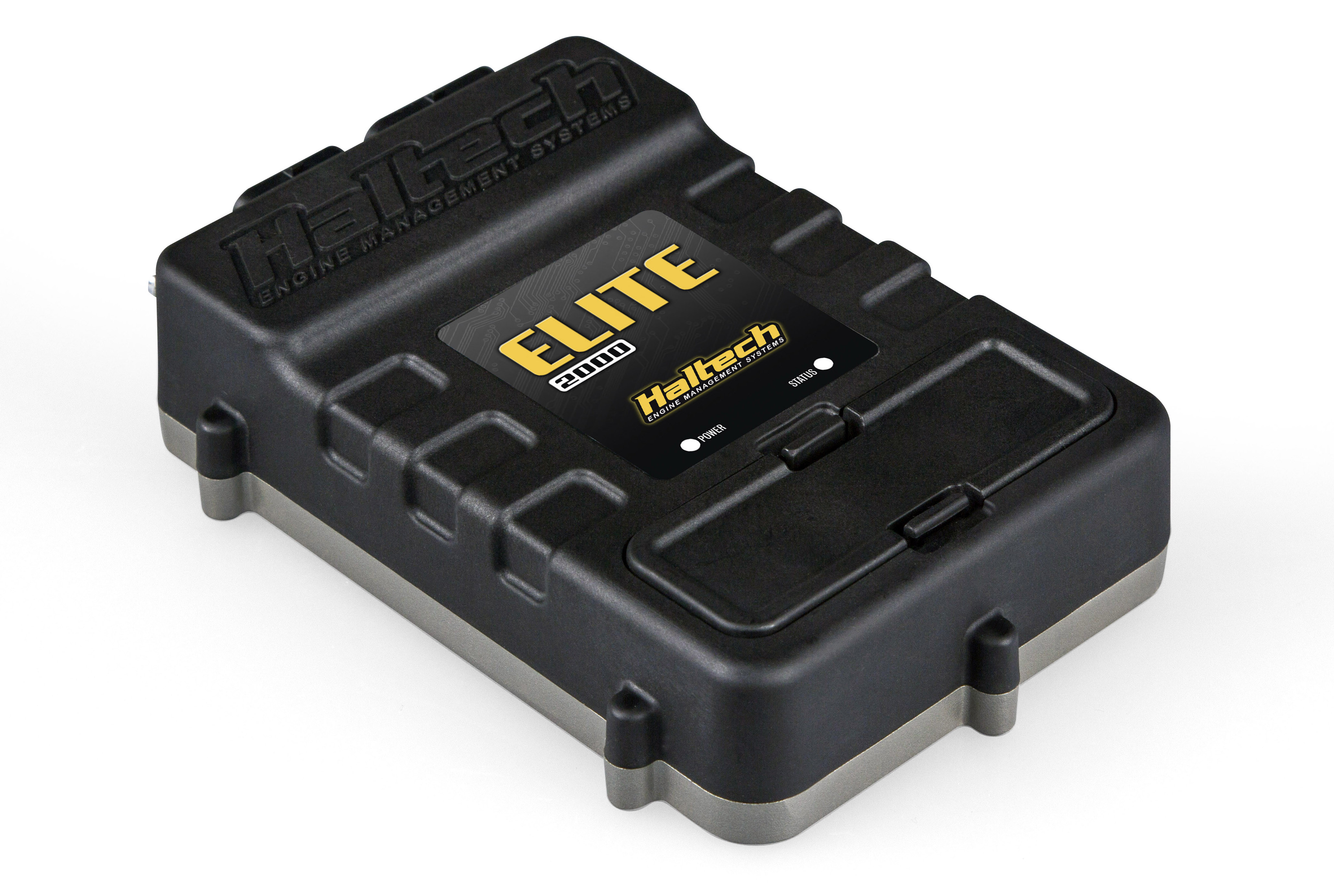

Elite 2000 Overview

Elite 2000 Overview


Features:


  1.  Waterproof Case (IP67 - only with pocket cover or waterproof USB Cable and USB Cap fitted)

NOTE: Waterproof USB Cable (HT-070002) and Waterproof USB Cap (HT-070004) are sold separately

  • 8 x Fuel Injection Outputs (Available as DPO if not used for injection)

  • 8 x Ignition Outputs (Available as DPO if not used for ignition)

  • 6 x Engine Position Inputs with extensive trigger type support

  • USB Laptop Communications up to 1 MB/s

  • Programmable Injector Peak and Hold Currents

  • OBDII Capable - Set and clear diagnostic trouble codes, view live engine data

  • ESP Calibration Software - Intuitive and easy to use

  • Dual CAN Bus communication for OBDII and Haltech CAN Expansion

  • Variable cam control - Independently control up to 2 Intake camshafts with auto tune capabilities

  • Short and Long term fuel,cam,boost and idle control learning

  • Dual Channel Knock Control - with high speed digital filtering for accurate detection

  • Multi-fuel Support - Support for Petrol (Gasoline),LPG, Methanol and Ethanol

  • E85 Flex Fuel Ready – Direct connection to sensor.

  • Closed Loop Boost Control – Multiple Modes – Tune by gear, wheel speed or time

  • Closed Loop Idle Control – With learning for consistent idle stability

  • Closed Loop 02 Control – Dual bank control for precise tuning

  • Anti-Lag and Launch Control – Drag and Rally modes

  • Data logging – Up to 20 channels of logging. Sampling rates up to 50ms

  • Engine Protection – Set limits for sensors and protect your engine

  • ECU comes fully enabled, no additional charges for advanced features
