Elite 550 Overview

Elite 550 Overview

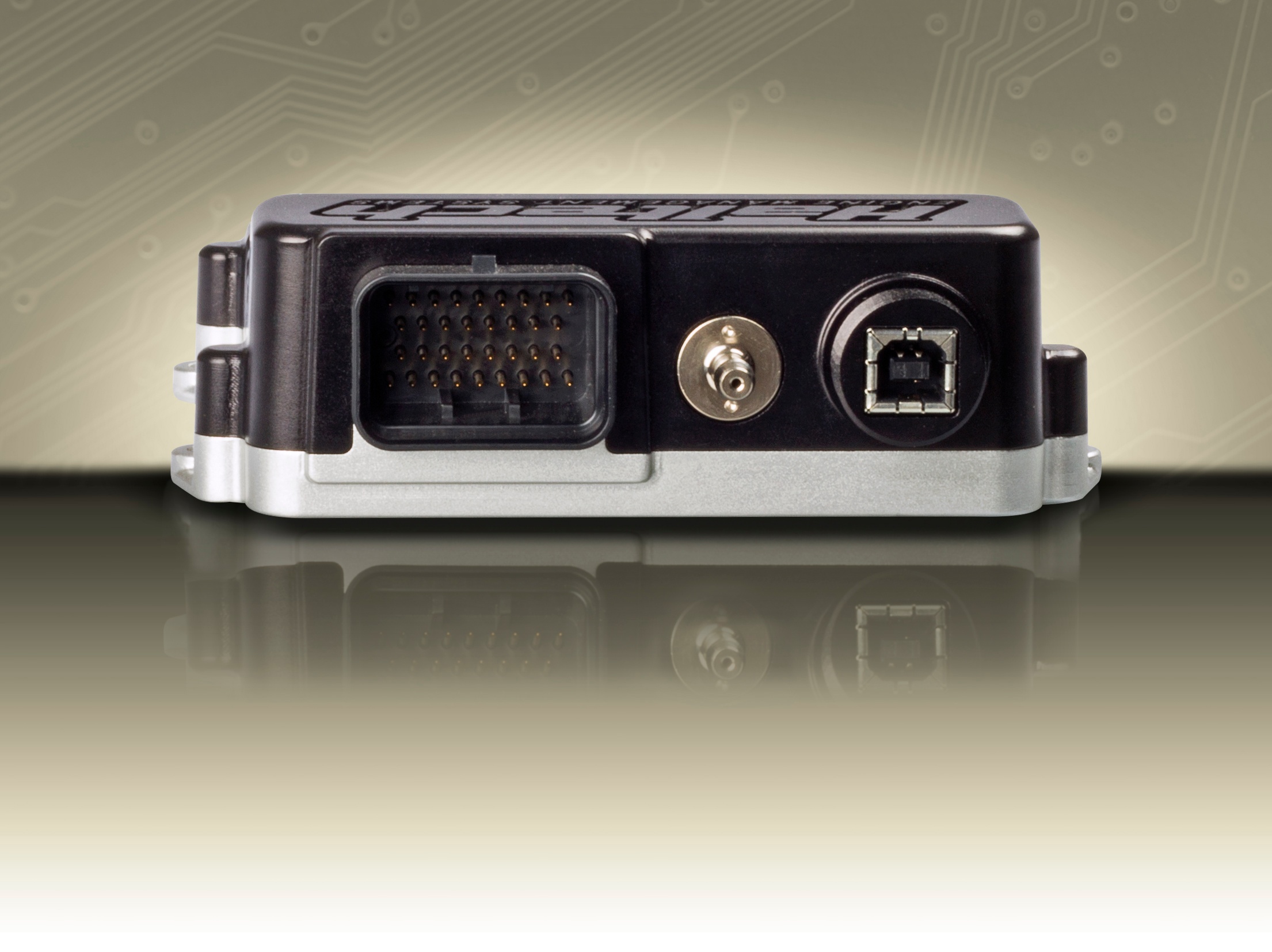

The Elite 550 is an entry-level ECU offering basic features; it features a robust, environmentally sealed, waterproof case, along with 4 fuel and ignition channels.





Features:

• Waterproof Case (IP67 - only with waterproof USB Cable or USB Cap fitted)

NOTE: Waterproof USB Cable (HT-070002) and Waterproof USB Cap (HT-070004) are sold separately.


• Waterproof Case (IP67) (with USB Cover Fitted)
• 34 Position AMP connector
• 4 x Fuel Injection Outputs (Peak And Hold (0-8A Peak / 0-2A Hold))
• 4 x Ignition Outputs
• 2 x Engine Position Inputs with extensive trigger type support
• 1 x Digital Pulsed Inputs (Digital inputs supported only)
• 5 x Digital Pulsed Outputs
• 2 x Analogue Voltage Inputs
• 1 x Throttle Position Input
• 1 x Coolant Temperature Input
• 1 x Air Temperature Input
• 1 x  CAN Bus communication for Haltech CAN Expansion
• Internal 3Bar Map Sensor rated up to 200kPa of Boost (2bar/29psi)
• ESP Calibration Software – Intuitive and easy to use
• User definable tables

• Closed Loop O2 Control
• ECU comes fully enabled, no additional charges for advanced features.
• Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems or Haltech Multiplex CDI systems
• Load sensing by:
       • Throttle Position (TPS),
       • Manifold Absolute Pressure (MAP) or
       • Mass Air Flow (MAF)


Inputs and Outputs:


• 4 x Fuel Injection Outputs (Peak And Hold (0-8A Peak / 0-2A Hold))
• 4 x Ignition Outputs
• 2 x Engine Position Inputs with extensive trigger type support
• 1 x Digital Pulsed Inputs (Digital inputs only supported)
• 5 x Digital Pulsed Outputs
• 2 x Analogue Voltage Inputs
• 1 x Throttle Position Input
• 1 x Coolant Temperature Input
• 1 x Air Temperature Input
• 1 x Internal 3Bar Map Sensor rated up to 200kPa of Boost (2bar/29psi)


• 1 x
CAN Bus communication for Haltech CAN Expansion


Technical Specifications:

Input Supply Voltage : 8VDC to 16VDC

Output Sensor Supply Maximum Current Ratings:

    • 5V Supply: 100mA Max

Dimensions :


Dimensions: 127mm (L) X 127mm (W) X 39mm (H)
                     5.0″ (L) X 5.0″ (W) X 1.54″ (H)
Weight: 350g (0.771lb)
