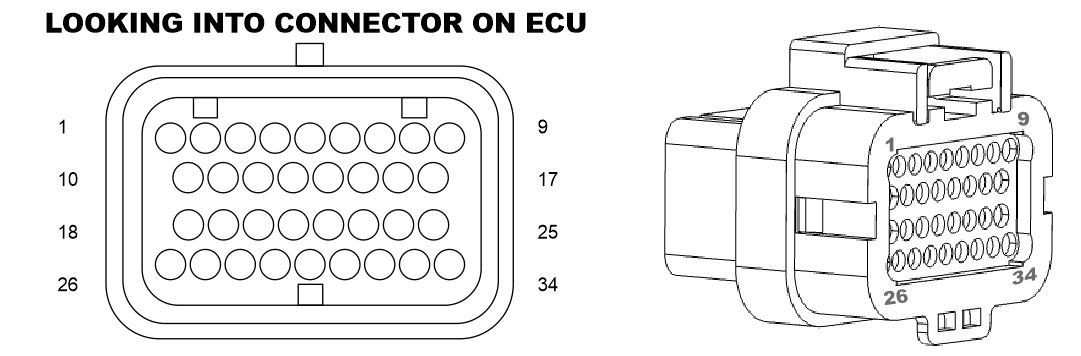

Elite 750 Complete Pinout
|
Pin # |
Wire Colour |
Connection |
|
1 |
V/BR |
DPO 2 |
|
2 |
GY/Y <SHD> |
AVI 1 (* O2 Sensor) |
|
3 |
Y/B |
IGN 1 |
|
4 |
Y/R |
IGN 2 |
|
5 |
Y/O |
IGN 3 |
|
6 |
Y/G |
IGN 4 |
|
7 |
Y/BR |
IGN 5 |
|
8 |
Y/L |
IGN 6 |
|
9 |
O |
+5V DC |
|
10 |
B |
BATTERY GROUND |
|
11 |
B/W |
SIGNAL GROUND |
|
12 |
GY <SHD> |
DPI 1 |
|
13 |
GY/B <SHD> |
DPI 2 |
|
14 |
W |
THROTTLE POSITION SENSOR |
|
15 |
Y |
AVI 3 (* MAP ) |
|
16 |
W |
CAN H |
|
17 |
L |
CAN L |
|
18 |
V/B |
DPO 1 |
|
19 |
L |
INJ 1 |
|
20 |
L/B |
INJ 2 |
|
21 |
L/BR |
INJ 3 |
|
22 |
L/R |
INJ 4 |
|
23 |
V/R |
DPO 3 |
|
24 |
B/Y |
DPO 5 (* Fuel Pump Relay) |
|
25 |
V/O |
DPO 4 |
|
26 |
R/L |
+13.8V ECU / INJECTOR PWR |
|
27 |
L/O |
INJ 5 |
|
28 |
L/Y |
INJ 6 |
|
29 |
GY |
AIR TEMPERATURE |
|
30 |
V |
COOLANT TEMPERATURE |
|
31 |
Y (GY 4C) |
TRIGGER + |
|
32 |
Y (GY/B 4C) |
HOME + |
|
33 |
G (GY 4C) |
TRIGGER - |
|
34 |
G (GY/B 4C) |
HOME - |
|
|
||
|
* Allocated to, but not limited to specified function |
||
