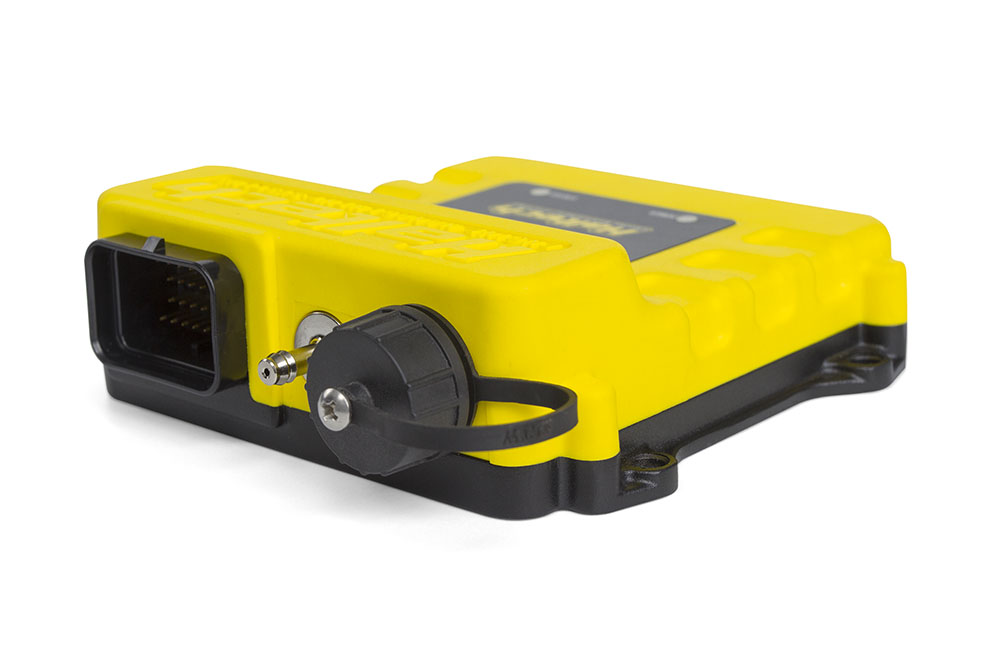

The Haltech Vehicle Management System (VMS) is an ignition only ECU that is targeted at mechanically injected and carburetor drag racing vehicles. The VMS is a 1 stop, 1 cable solution for ignition timing control (8 channel), boost control, nitrous control, launch control, transbrake control, staging bump and creep control and datalogging.

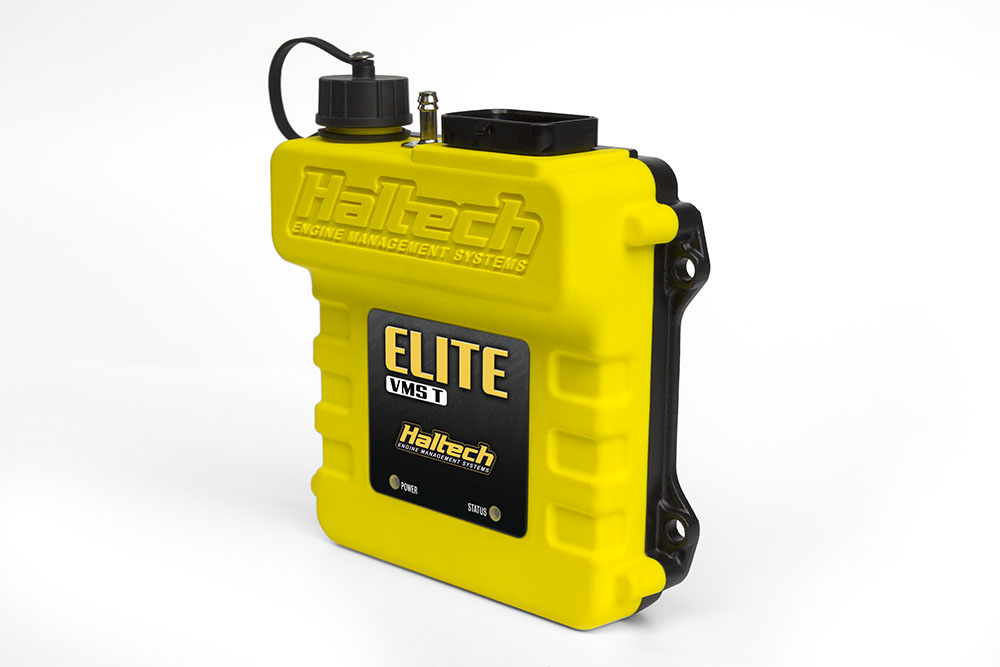

A VMS T variant is also available (for race classes that allow it) which adds active torque management based on target driveshaft RPM or target engine RPM, or any other channel that the ECU has active to ensure consistent drag racing results.

Main Features

  • Waterproof Case (IP67 - only with waterproof USB Cable or USB Cap fitted)

NOTE: Waterproof USB Cable (HT-070002) and Waterproof USB Cap (HT-070004) are sold separately.

  • 34 Position AMP connector

  • 8 x Ignition Outputs

  • 2 x Engine Position Inputs with extensive trigger type support (including coil negative trigger)

  • 2 x Digital Pulsed Inputs (Digital inputs only supported)

  • 9 x Digital Pulsed Outputs

  • 5 x Analogue Voltage Inputs

  • 1 x CAN Connection (Haltech CAN Only)

  • Advanced Torque Management Functionality (VMS T only)

  • USB Laptop Communications up to 1 MB/s

  • Data logging - up to 20 channels of logging for the VMS and 40 channels of logging for the VMS T
    Fastest Sample Rate 5ms (Max 1Mb Internal Storage )

  • 1 to 8 Cylinder engines – 1 to 4 rotor engines

  • Normally aspirated or forced induction

  • Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)

  • In-built 29 PSI MAP Sensor

  • Distributor ignition systems, multi-coil systems or Haltech Multiplex CDI systems

Technical Specifications

Input Supply Voltage : 8VDC to 16VDC
Output Sensor Supply Maximum Current Ratings:
5V Supply: 100mAMax

Physical Dimensions

Dimensions: 127mm (L) X 127mm (W) X 39mm(H)
5.0" (L) X 5.0" (W) X 1.54" (H)
Weight: 350g (0.771lb)
