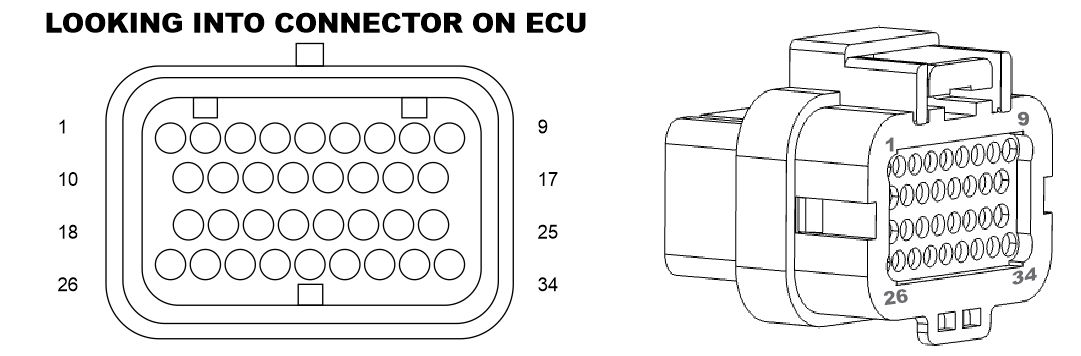

Pin #

Wire Colour

Connection

1

V/BR

DPO 2

2

GY/Y

AVI 1

3

Y/B

IGN 1

4

Y/R

IGN 2

5

Y/O

IGN 3

6

Y/G

IGN 4

7

Y/BR

IGN 5

8

Y/L

IGN 6

9

O

+5V DC

10

B

BATTERY GROUND

11

B/W

SIGNAL GROUND

12

GY <SHD>

DPI 1

13

GY/B

DPI 2

14

W

AVI 2

15

Y

AVI 3

16

W

CAN H

17

L

CAN L

18

V/B

DPO 1

19

L

DPO 6

20

L/B

DPO 7

21

L/BR

DPO 8

22

L/R

DPO 9

23

V/R

DPO 3

24

B/Y

DPO 5

25

V/O

DPO 4

26

R/L

+13.8V ECU PWR

27

Y/V

IGN 7

28

Y/GY

IGN 8

29

GY

AVI 4

30

V

AVI 5

31

Y (GY 4C)

TRIGGER +

32

Y (GY/B 4C)

HOME +

33

G (GY 4C)

TRIGGER -

34

G (GY/B 4C)

HOME -
