Engine Control Relay
The Engine Control Relay function allows the Nexus ECU to control
the 12V+ power supply to certain parts of the engine management, such as
injectors and ignition coils. This function should remain enabled when
a Haltech supplied universal wiring loom with the integral fuse/relay
box has been installed in the vehicle.
General

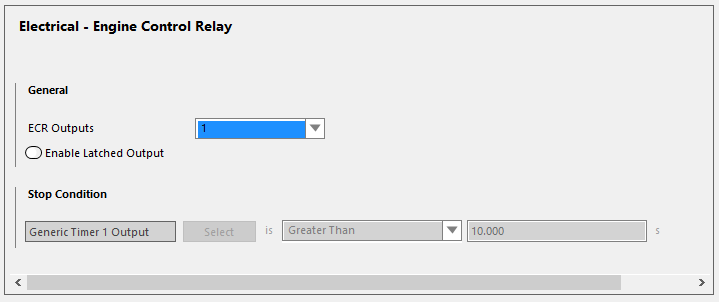

ECR Outputs - sets the number of ECR outputs. These outputs will turn ON/OFF with the ECR output state.
Enable Latched Output - When enabled, the ECR will switch ON with ignition input but be latched until such time as the condition is satisfied.
Stop Condition - Conditions used to disable the Engine Control Relay Output.
