Coolant Temp Correction

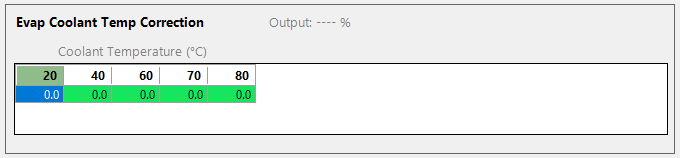

EVAP Coolant Temp Correction Table

This table allows for correction of the duty with coolant temperature. It is normal operation to not allow excessive vapour to enter the intake while and engine and catalytic converters are not at operating temperature. Typically it will be expected to use large negative numbers under cold temperatures to reduce the duty under these conditions. Up to 2D mapping is available.
