EVAP Wiring

Wiring

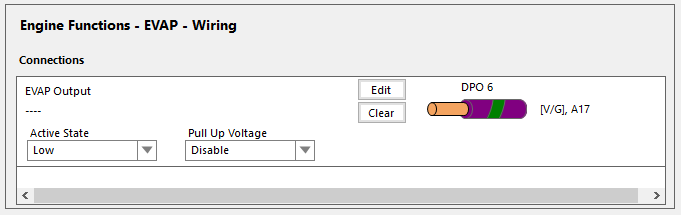

This node allows you to assign the output for the EVAP Solenoid. This will typically be a DPO.
