Expanding and Contracting groups

Expanding and Contracting groups

To expand the tree, click on the with the mouse, or alternatively using the keyboard, use the 'Alt Right' key combination.
To contract the tree, click on the with the mouse, or alternatively using the keyboard, use the 'Alt Left' key combination.

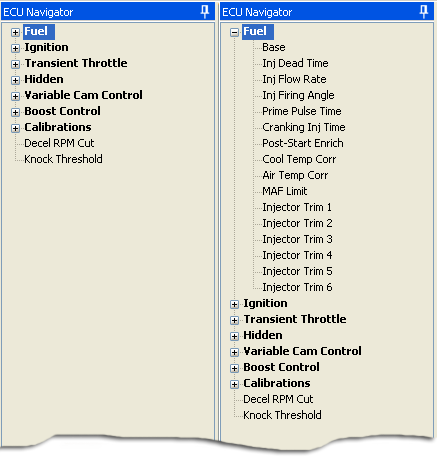

Figure 10: Expanding & contracting the ECU Navigator groups
