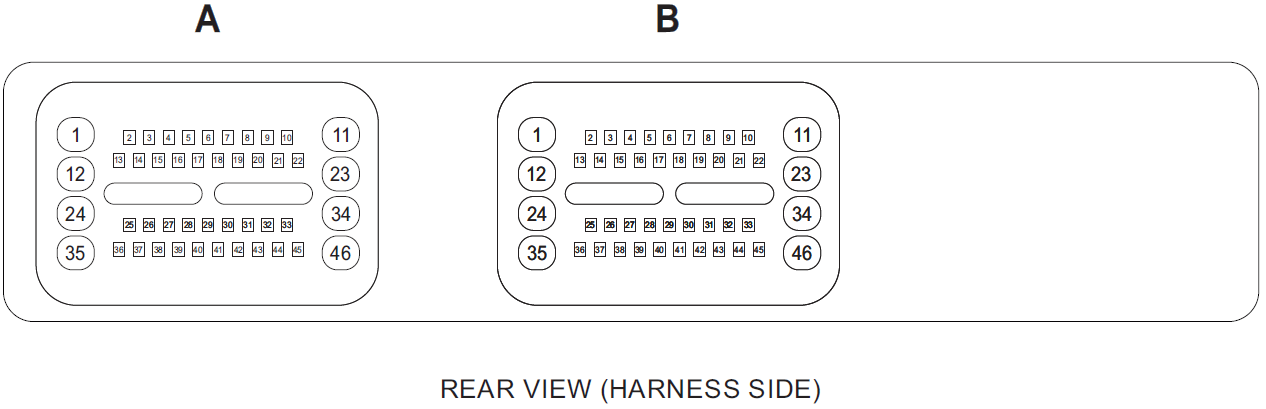

A01

-

A02

Park/Neutral Switch Input

A03

Injector 6 Output

A04

Injector 4 Output

A05

Cam Control - Intake Solenoid

A06

Cam Control - Exhaust Solenoid

A07

Injector 2 Output

A08

Injector 5 Output

A09

Narrowband Heater 2 Output (Post-Cat) (Not Used)

A10

-

A11

-

A12

Ignition 3 Output

A13

Oil Temperature Sensor Input (Turbo Models Only)

A14

Injector 1 Output

A15

Injector 3 Output

A16

DBW TPS (Throttle Position Sensor) 2 Input

A17

Narrowband Sensor 1 Input (Pre-Cat)

A18

-

A19

Narrowband Heater 1 Output (Pre-Cat)

A20

-

A21

+5V DC Sensor Supply

A22

Signal Ground for Input Sensors

A23

Ignition 6 Ouput

A24

Ignition 5 Ouput

A25

Intake Air Temperature Sensor Input

A26

Oil Pressure Switch Input

A27

DBW Motor +

A28

DBW Motor -

A29

Knock Sensor Signal 1

A30

Crankshaft Position Sensor (+)

A31

Camshaft Position Sensor 1

A32

Signal Ground for Input Sensors

A33

Camshaft Position Sensor 2

A34

Ignition 4 Output

A35

Ignition 1 Ouput

A36

+5V DC Sensor Supply

A37

Narrowband Sensor 2 Input (Post-Cat) (Not Used)

A38

Manifold Pressure Input

A39

Knock Sensor Signal 2

A40

Signal Ground for Input Sensors

A41

Crankshaft Position Sensor (-)

A42

-

A43

Signal Ground for Input Sensors

A44

DBW TPS (Throttle Position Sensor) 1 Input

A45

Coolant Temperature Sensor Input

A46

Ignition 2 Output

B01

Battery Negative

B02

A/C Control Ouput

B03

Dual Intake Runner Output (NON Turbo Only)

B04

Clutch Switch Input (M/T Only)

B05

Starter Motor Relay Output

B06

-

B07

-

B08

+5V DC Sensor Supply

B09

+12V Ignition Switch

B10

Battery Negative

B11

Battery Negative

B12

Battery Negative

B13

CAN High

B14

CAN Low

B15

Air Con Pressure Input

B16

Cruise Control Input

B17

DBW APP 1 Input

B18

DBW APP 2 Input

B19

Boost Control Output (Turbo Models Only)

B20

+5V DC Sensor Supply

B21

Signal Ground for Input Sensors

B22

Evaporative Emissions Control Output

B23

Battery Negative

B24

Thermofan 1 Output

B25

Brake Pedal Switch 1 Input

B26

-

B27

Fuel Pump Output

B28

Alternator Control Output

B29

Alternator Monitor

B30

Reverse Switch Input

B31

Power Steering Switch Input

B32

Brake Pedal Switch 2 Input

B33

Signal Ground for Input Sensors

B34

+13.8V ECU Power

B35

Thermofan 2 Output

B36

Vehicle Speed Output

B37

Engine Control Relay

B38

-

B39

-

B40

+12V DC Permanent Battery Power

B41

-

B42

Reverse Lockout Output

B43

-

B44

Boost Pressure Sensor

B45

+5V DC Sensor Supply

B46

+13.8V ECU Power
