Firing Angle BTDC

Firing Angle BTDC

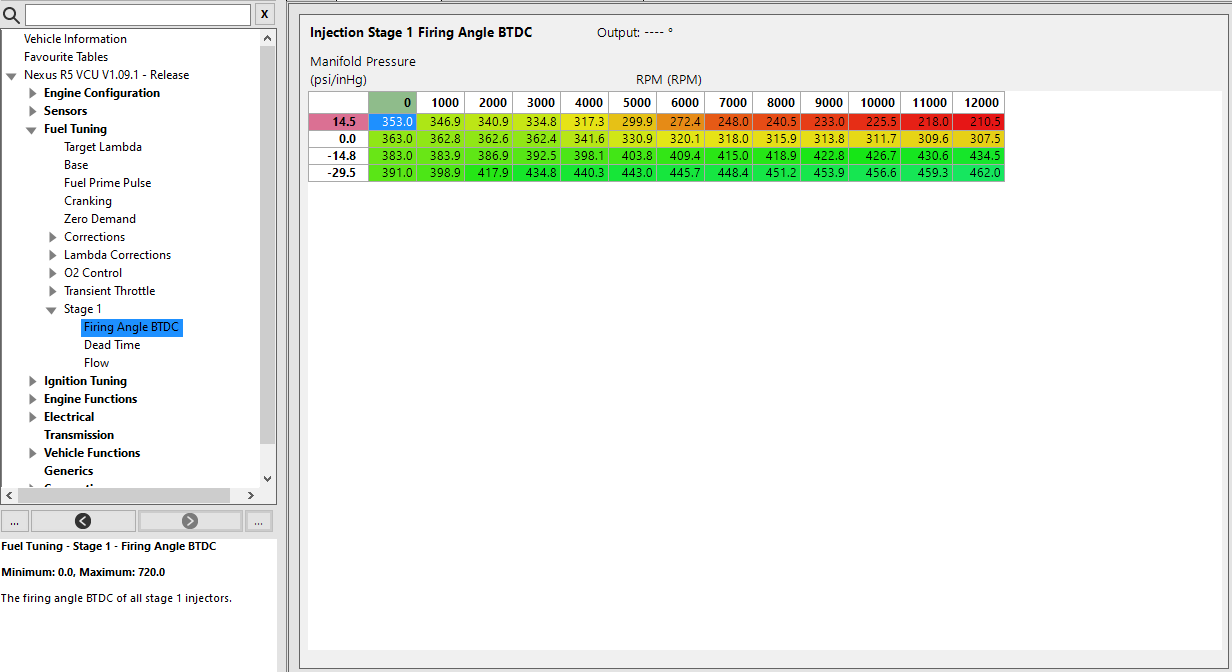

This table sets the firing angle of the injection events for this stage of injection expressed as degrees before TDC compression.

If 'Injector Timing Method' is set to 'End of Injection', then this table sets the angle at which the injection events will end. (most common)
If 'Injector Timing Method' is set to 'Start of Injection', then this table sets the engine angle at which the injection event will begin.
