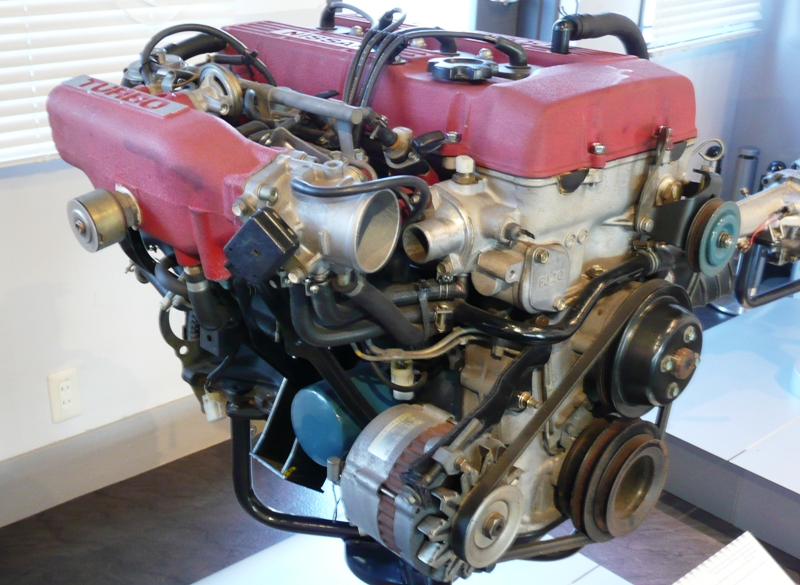

Distributor

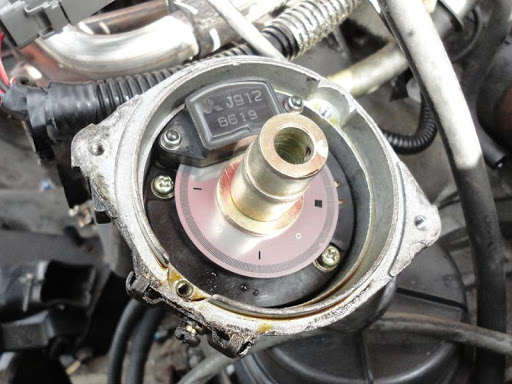

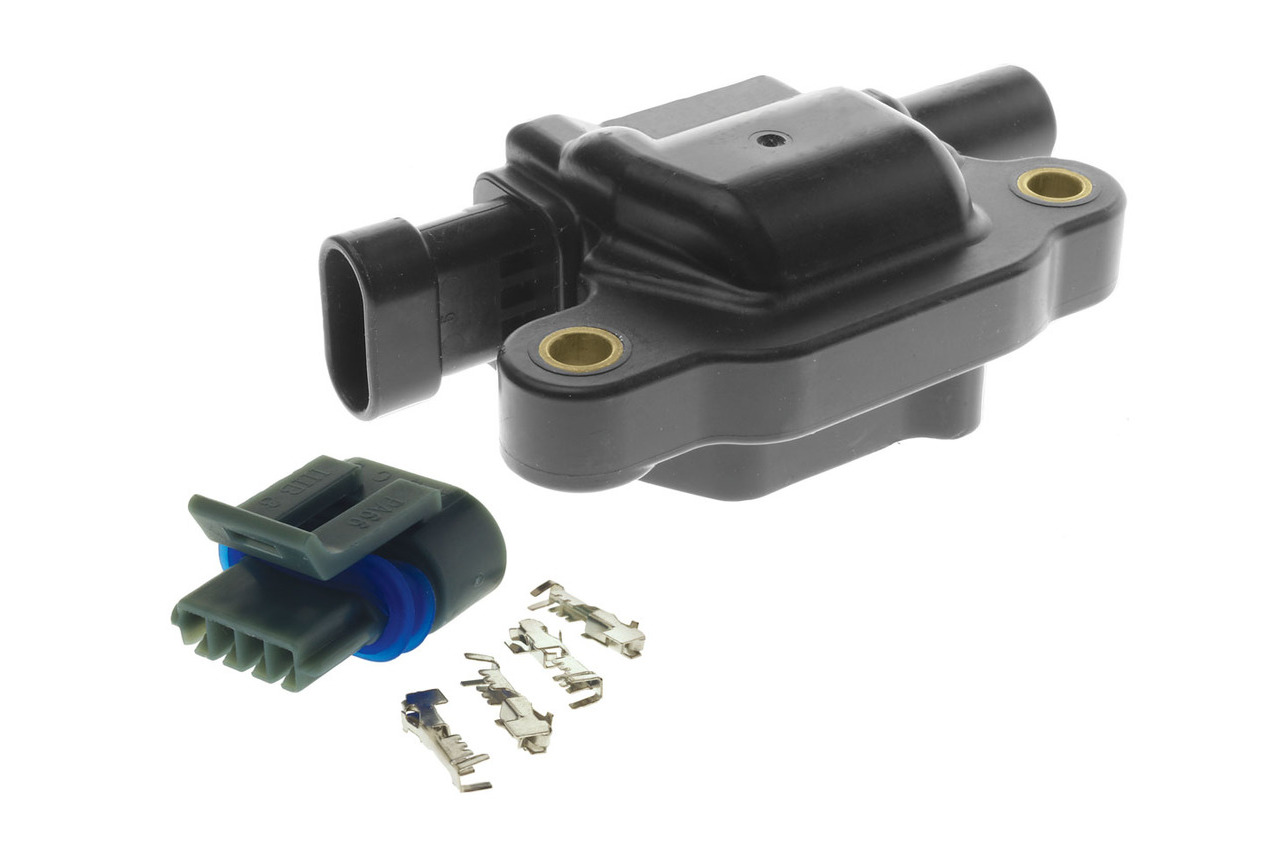

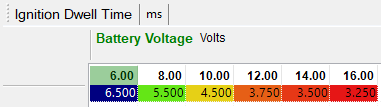

The distributor is located under the intake plenum. A dual optical (Hall Effect) trigger is used on this engine with a slotted disc inside the distributor. The trigger has 4x slots spaced at 90 degrees with 1x slot larger than the others. The Home (sync) has 360x slots (1x every 2 degrees). This trigger system does support Sequential fuel control and Direct Fire ignition.

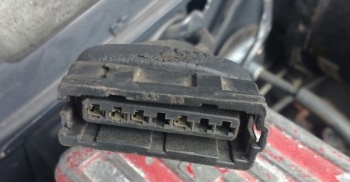

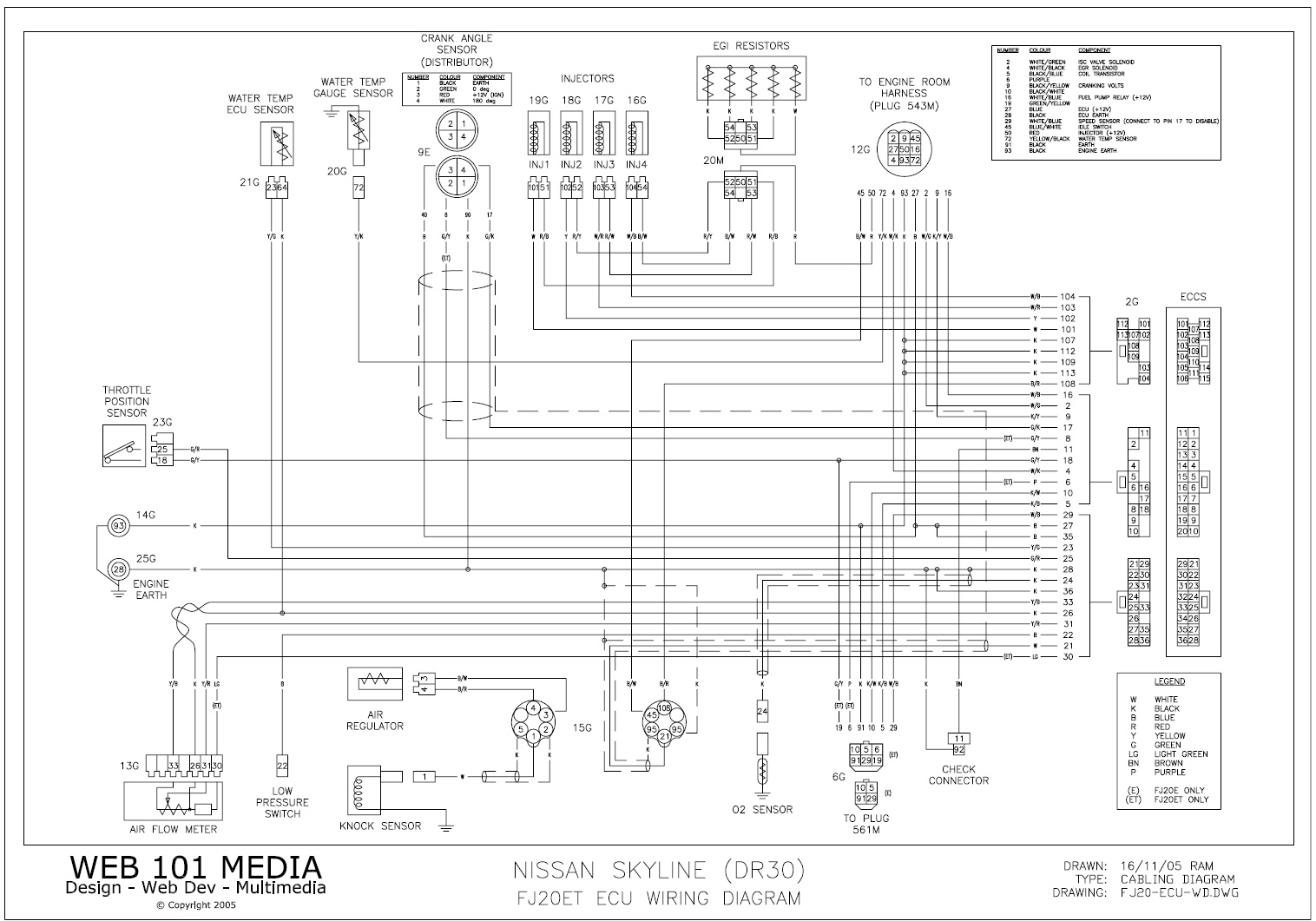

Wiring
Wire Colour
| Description
| Haltech Connection
|
Red
| 12V+ Switched
| Red (Trigger 4-core)
|
Green
| Trigger
| Yellow (Trigger 4-core)
|
Black
| Signal Ground
| Blue (Trigger 4-core)
|
White
| Home
| Yellow (Home 4-core)
|
Trigger/Home Wiring Hack
For applications where there is a dual Hall Effect pickup in a CAS or Distributor there is a quick wiring hack that allows the Home+ signal to be incorporated in the Trigger 4-core shielded cable. This can make the wiring much cleaner and easier.
To do this we will be relocated the wiring at the ECU Connector so that the unusued Trigger- wire is instead placed onto the ECU pin for Home+. This means that the Trigger 4-core cable now has 12V+, Ground, Trigger+ and Home+ all in the one cable. The GREEN wire that is labelled at Trigger- is now actually the Home+.
For Elite 550/750/950 models
1. Unplug the Main Connector at the ECU end.
2. Unlock the connector by pushing in the large white tab on the connector until it clicks. This will cause the two smaller white tabs to pop up on the other side.
3. Remove the Yellow Home+ wire from pin 32. Insulate this wire, it will not be used.
4. Remove the Green Trigger- wire from pin 33 and move it to pin 32. Push it all the way until you can see the metal pin clearly from the pin side of the connector and it looks the same as all other pins.
5. Lock the connector by pushing back down the 2x white tabs until they click into position.
For Elite 1000/1500/2000/2500 models
1. Unplug the smaller 26-pin Main Connector at the ECU end.
2. Unlock the connector by pushing in the large white tab on the connector until it clicks. This will cause the two smaller white tabs to pop up on the other side.
3. Remove the Yellow Home+ wire from pin 2.
4. Remove the Green Trigger- wire that is in pin 5 and move it to pin2. Push it all the way until you can see the metal pin clearly from the pin side of the connector and it looks the same as all other pins.
5. Lock the 26-pin connector by pushing back down the 2x white tabs until they click into position.
