Fuel Composition Correction

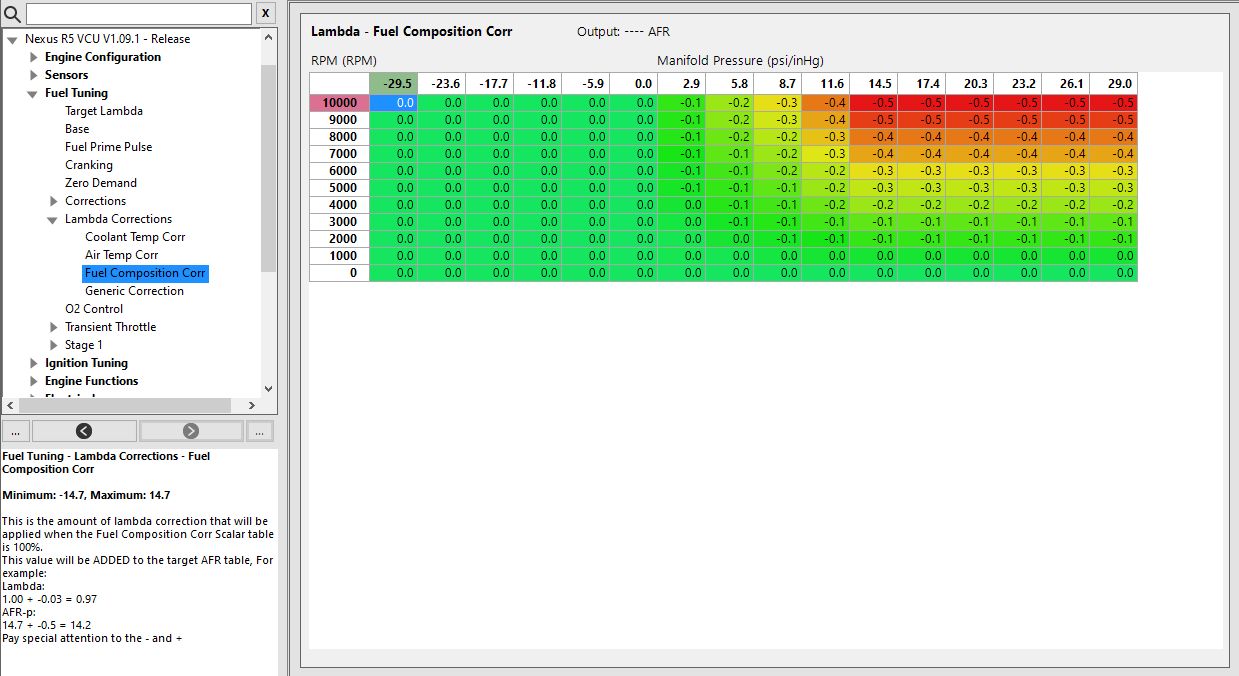

This table applies a correction to the target lambda based on Fuel Composition. The output of this table scales with the Fuel Composition Correction Scalar value. Eg, when the Fuel Comp Scalar is 50%, then 50% of the values in this table are applied.
