Fuel Flow Sensor

Fuel Flow Sensor

A Fuel flow sensor is used to monitor the amount of fuel flowing in the fuel system. It is most commonly combined with a Fuel Return Flow sensor to exactly calculate the fuel being consumed by the engine by measuring the fuel flow before and after the fuel injectors.

Fuel Flow Sensor Configuration

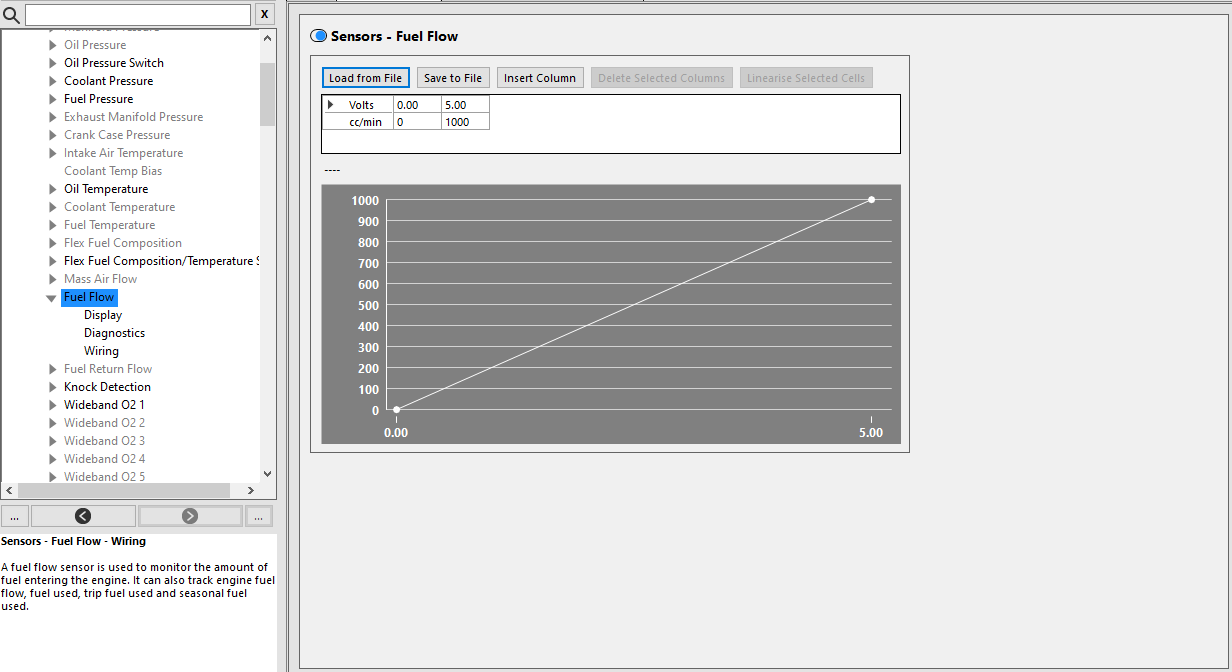

This node is used to calibrate the Fuel Flow sensor.

Display

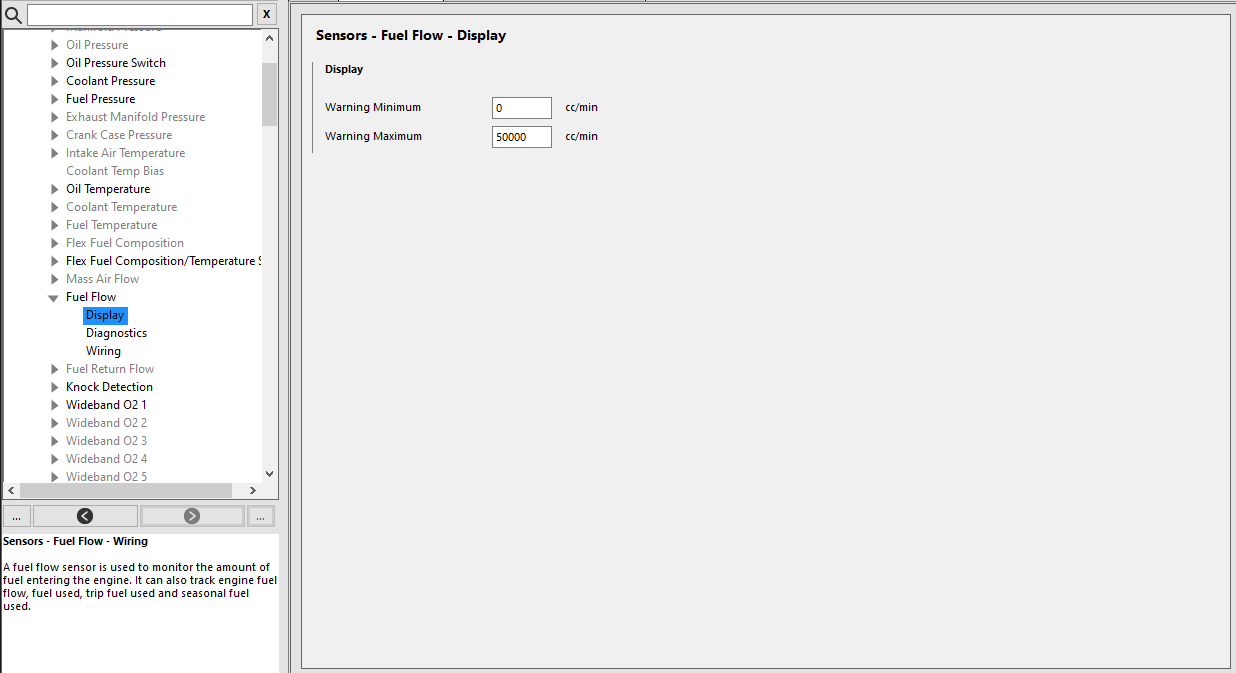

This node sets the display settings for the Fuel Flow channel.
Warning Maximum - Sets the flow rate at which the Fuel Flow sensor Number Displays, Gauges and Bars will enter their lower warning state.
Warning Maximum - Sets the flow rate at which the Fuel Flow sensor Number Displays, Gauges and Bars will enter their upper warning state

Diagnostics

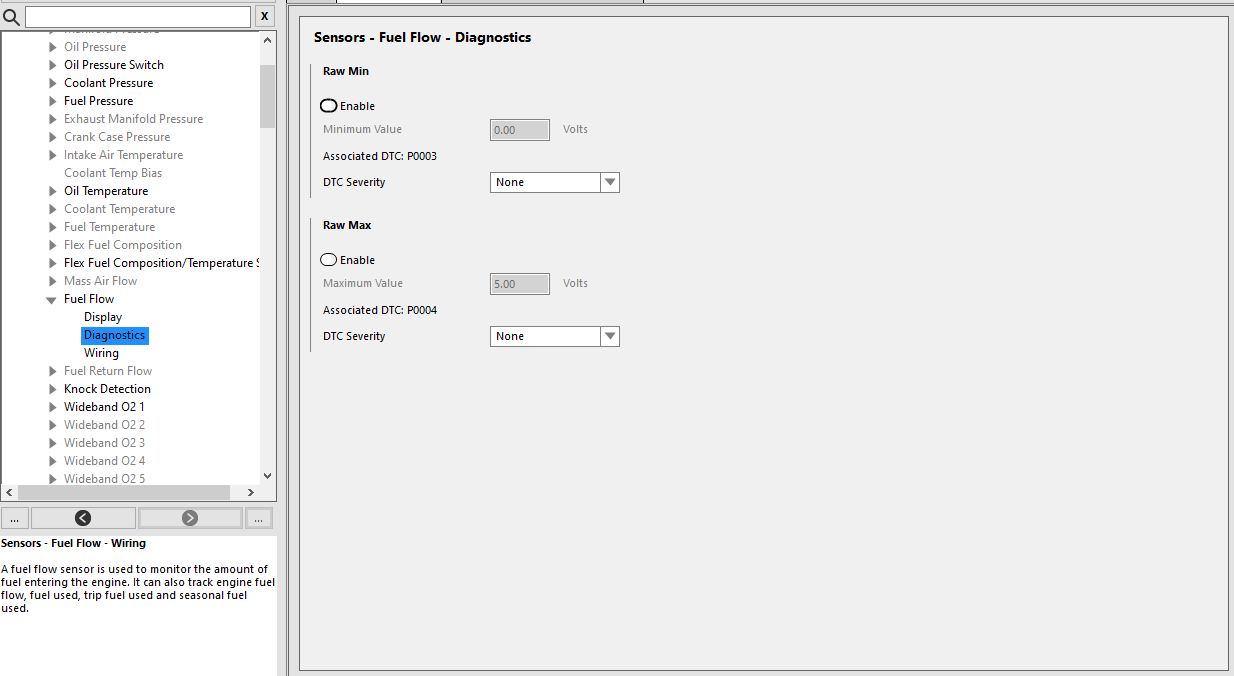

This node allows the enabling of high and low voltage/frequency DTCs for the Fuel Flow sensor.

A DTC severity can be set for each voltage/frequency, which will trigger an Engine Protection level for the relevant setting.

Wiring

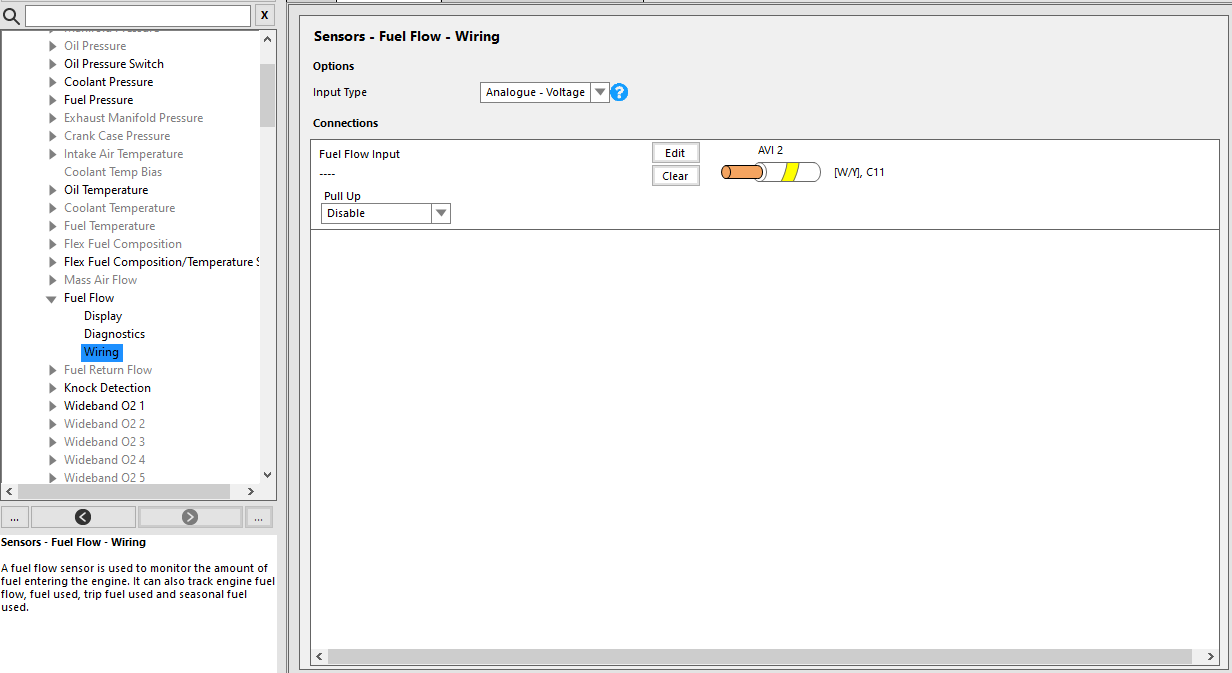

This node configures the wiring for the Fuel Flow sensor, as well as selecting the input type.

Select 'Analogue - Voltage' if the Fuel Flow Sensor to be connected produces a 0-5V signal. This sensor generally has the Pull-Up disabled.
Select 'Digital - Frequency' if the Fuel Flow Sensor being connected produces a frequency signal.
