Fuel Temperature Sensor

Fuel Temperature Sensor


A Fuel Temperature Sensor can be used with your ECU for datalogging and for Engine Protection purposes. Temperature sensors are typically two wire sensors; a signal wire that is connected to an AVI, and a signal ground wire.

Fuel Temperature Sensor Configuration

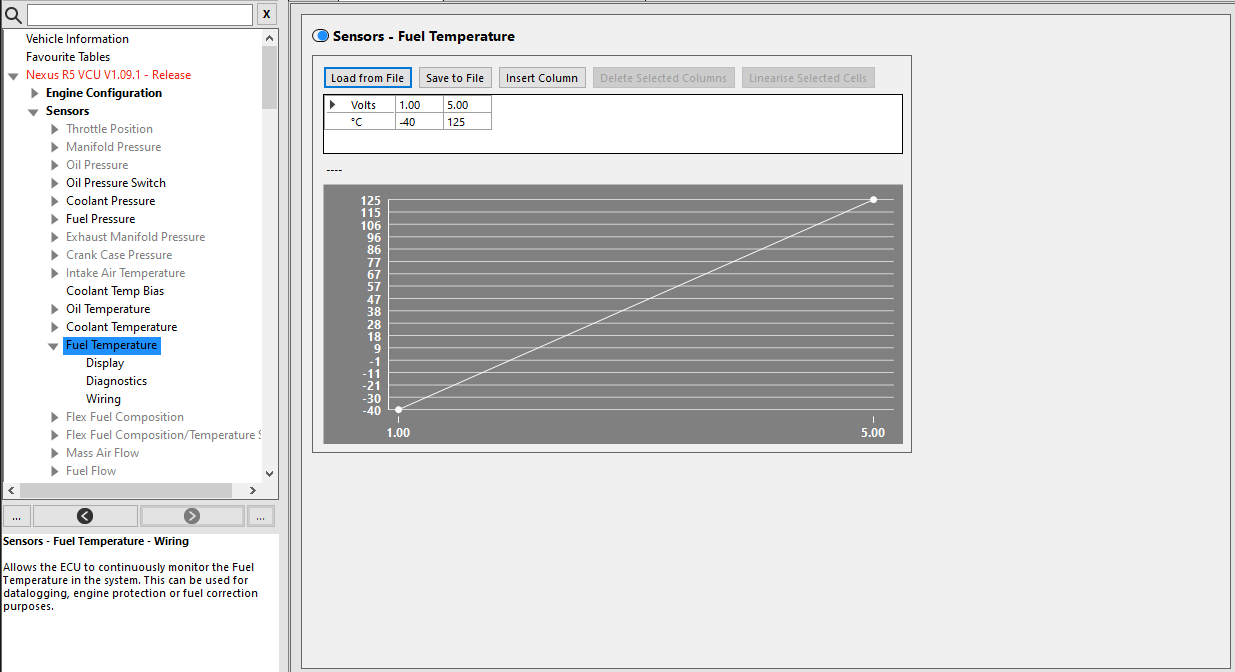

On this node, the Fuel Temperature sensor calibration can be loaded or entered manually. If you have purchased a temp sensor from Haltech, calibrations can be loaded directly into the calibration table by using the 'Load from File' button. Calibrations can be saved to file by using the 'Save to File' button.

Display

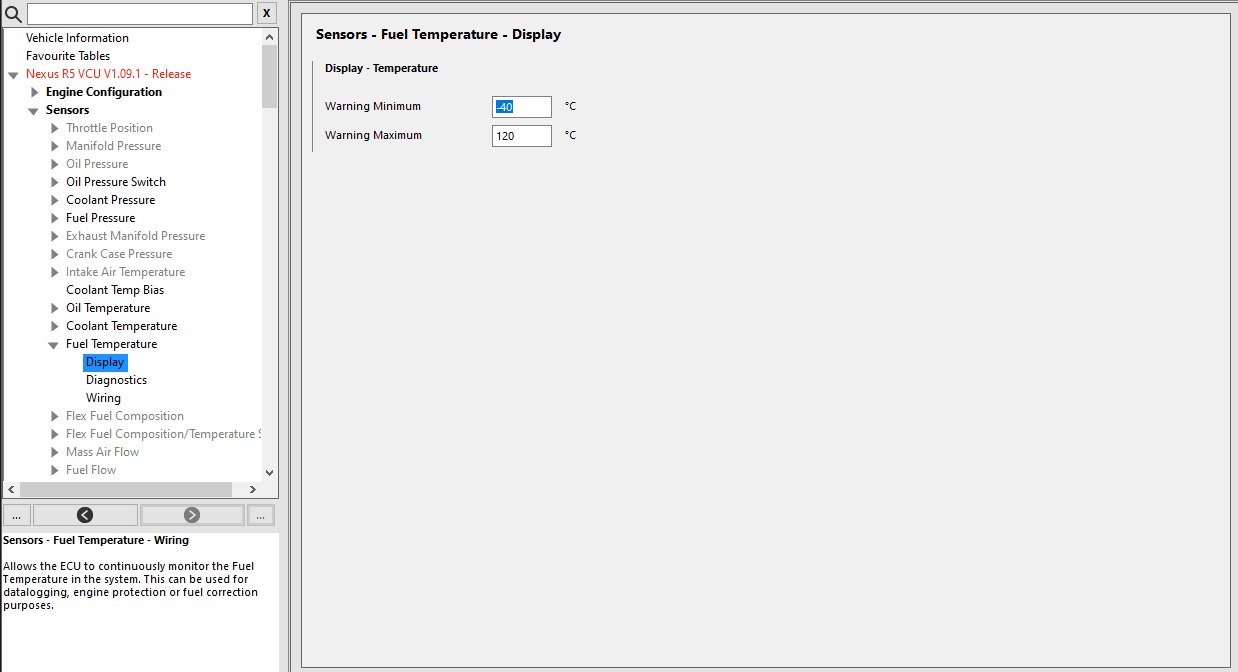

This node sets the display settings for the Fuel Temperature channel.
Warning Minimum - Sets the pressure at which the Fuel Temperature sensor Number Displays, Gauges and Bars will enter their lower warning state.
Warning Maximum - Sets the pressure at which the Fuel Temperature sensor Number Displays, Gauges and Bars will enter their upper warning state

Diagnostics

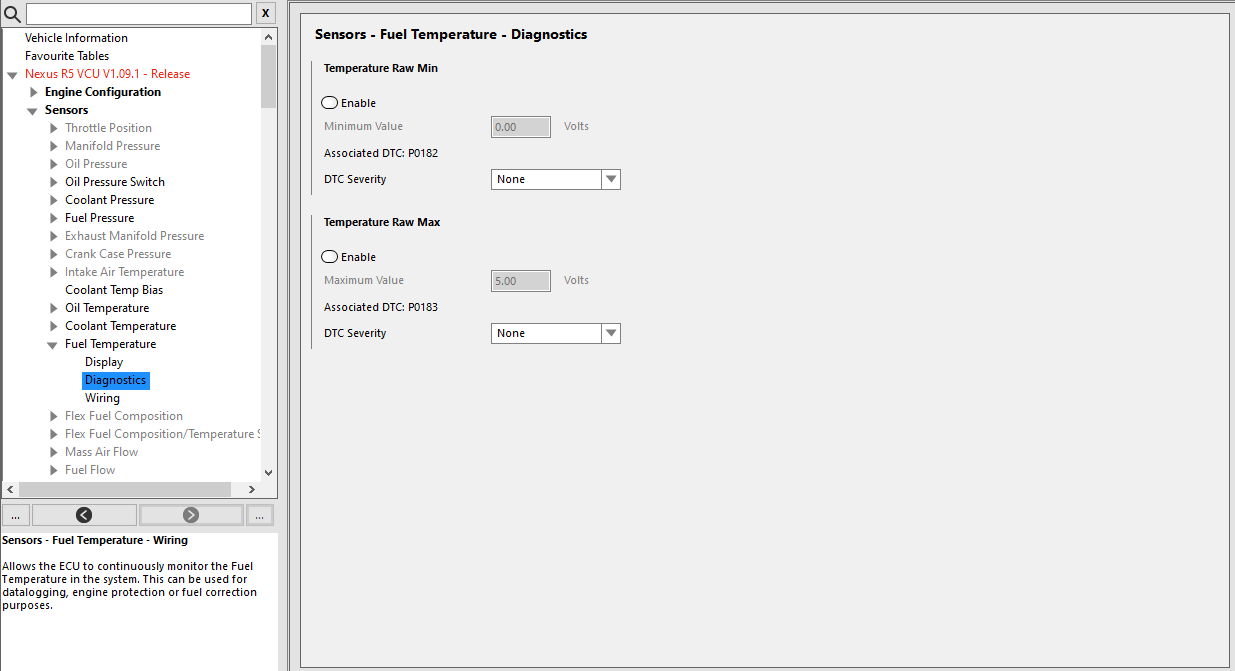

This node allows the enabling of high and low voltage DTCs for the Fuel Temperature sensor.

A DTC severity can be set for each voltage, which will trigger an Engine Protection level for the relevant setting.

Wiring

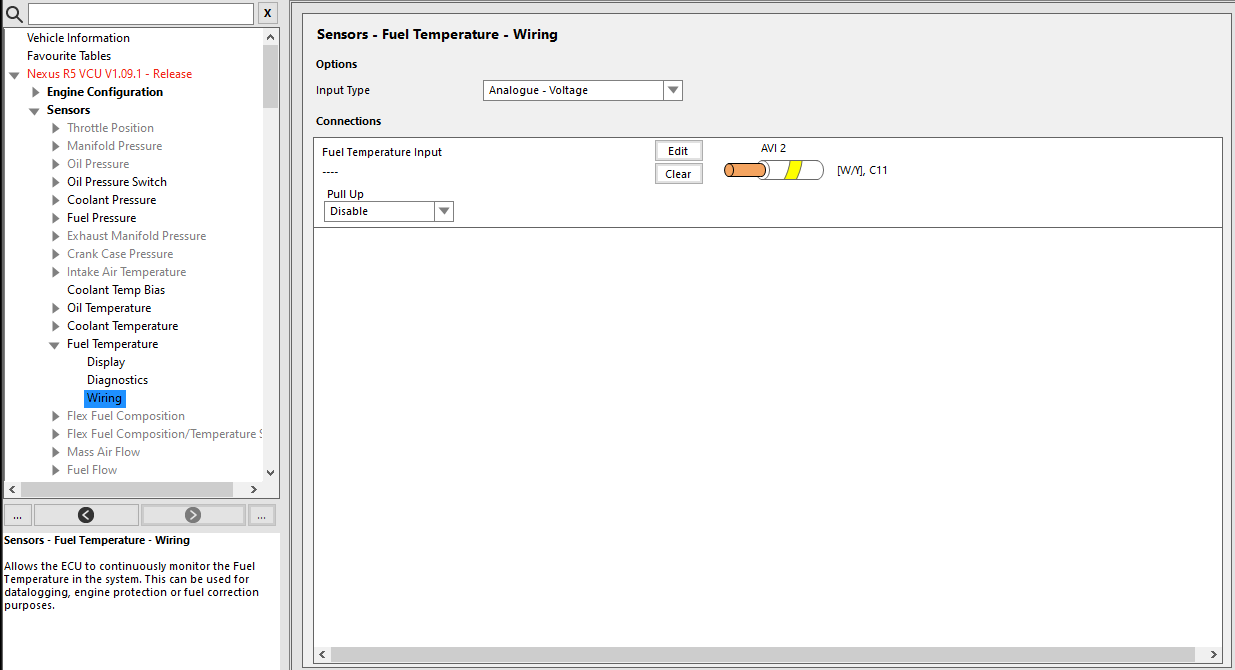

This node allows you to assign the input for the Fuel Temperature sensor.
Fuel Temperature Sensors use an Analog Input. Any available AVI can be used.
It is recommended to enable the Pull Up. This connects a 1kOhm internal resistor between the signal input and 5v.
