Gear Correction

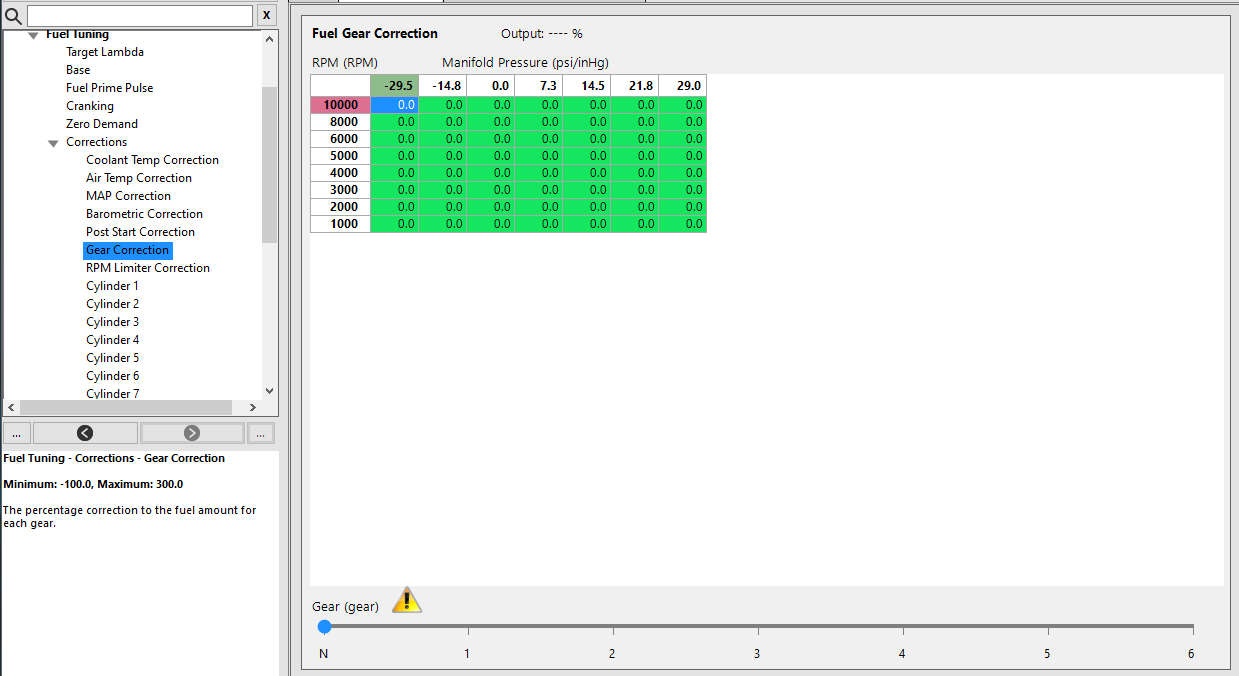

This table allows for a fuel correction based on the current Gear.

This table is a 4D table and therefore each gear position has its own 3D table for correction.  Use the slider to select the appropriate 'slice' for the relevant gear correction table.
