Throttle Blip Gear Tolerance

Throttle Blip Gear Tolerance

Throttle Blip Gear Tolerance

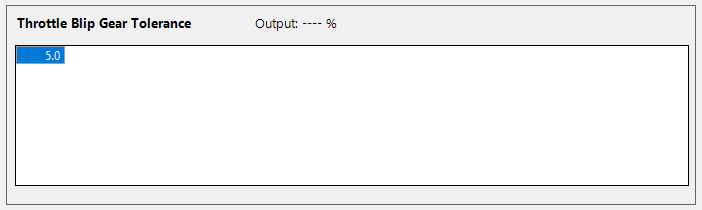

This table is only available if the Gear Tolerance Enable is onin the Flat Shift function.


This setting is used by the Throttle Blip Gear channel to determine whether a vehicle is in gear or not at any point in time. This is a rotational speed tolerance between the engine rpm and wheel/driveline speed, and is used to ensure the clutch is fully disengaged before a throttle blip event begins.

E.g If Gear Ratio 2 is 21 km/h per 1000 RPM and the Gear Tolerance is set to 5%, throttle blip gear would report 2nd gear if the current gear ratio was within +- 5% of 21km/h per 1000 RPM. In other words, if the gear ratio was above 19.95 km/h per 1000 RPM or below 22.05 km/h per 1000 RPM then it would be be in the tolerance range of the gear 2nd gear.
