Generic Fuel Correction

Generic Fuel Correction

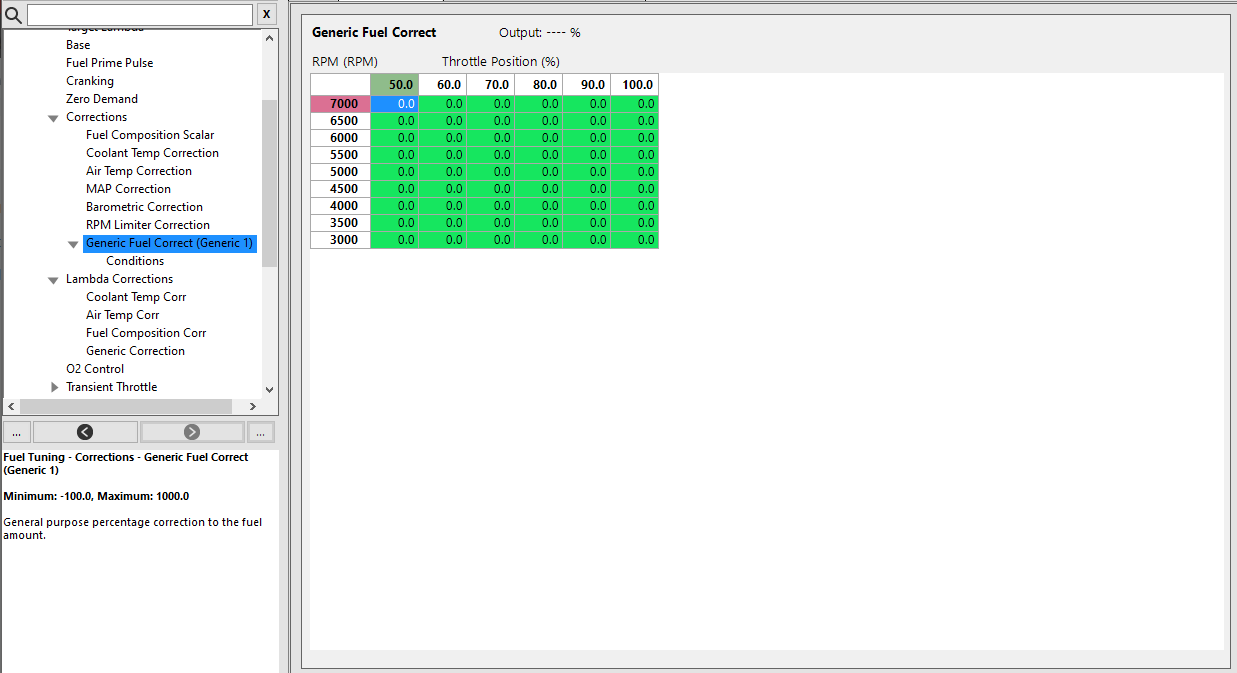

Generic correction tables are user-defined tables that can be conditionally applied. Up to 4 Generic Tables are available.

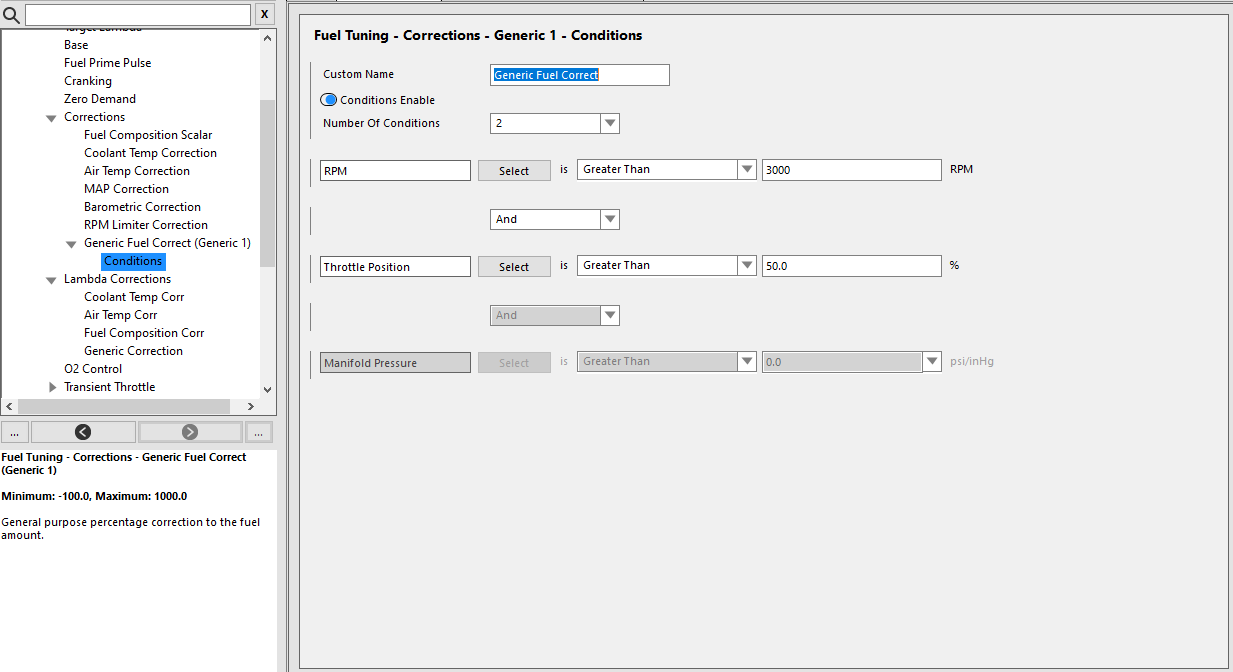

When enabled, a Conditions node will appear as a child to the Generic node where a Custom Name can be given to the correction table, along with an optional set of conditions that control when the table is active.
