Generic Channel

Generic Channel

The Generic Channel function allows a custom channel to be created for mapping or datalogging purposes based on up to 3 other channels and their conditions.

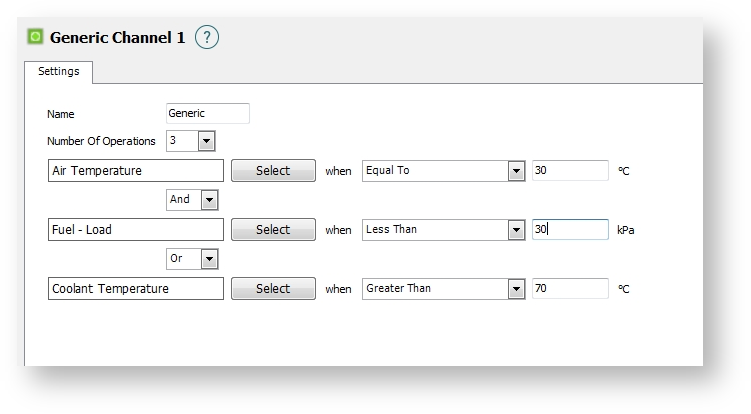

Settings Tab

Name

Enter a name that is to be used for this table. This name can be used when searching for channels throughout the system.

Number Of Operations

Selects the number of channels, up to 3, that will be used in the calculation of your Generic Channel

Select Channel

Allow selection of the ECU channel to be used.

Maths

A selection of Equal To, Not Equal To, Greater Than, Less Than, Greater Than Or Equal To, Less Than Or Equal To that is to be used.

Value

The value the maths must meet.

And/Or

Allows conditions to be combined so that multiple conditions must be met to create the new Generic Channel.
