Generic Correction

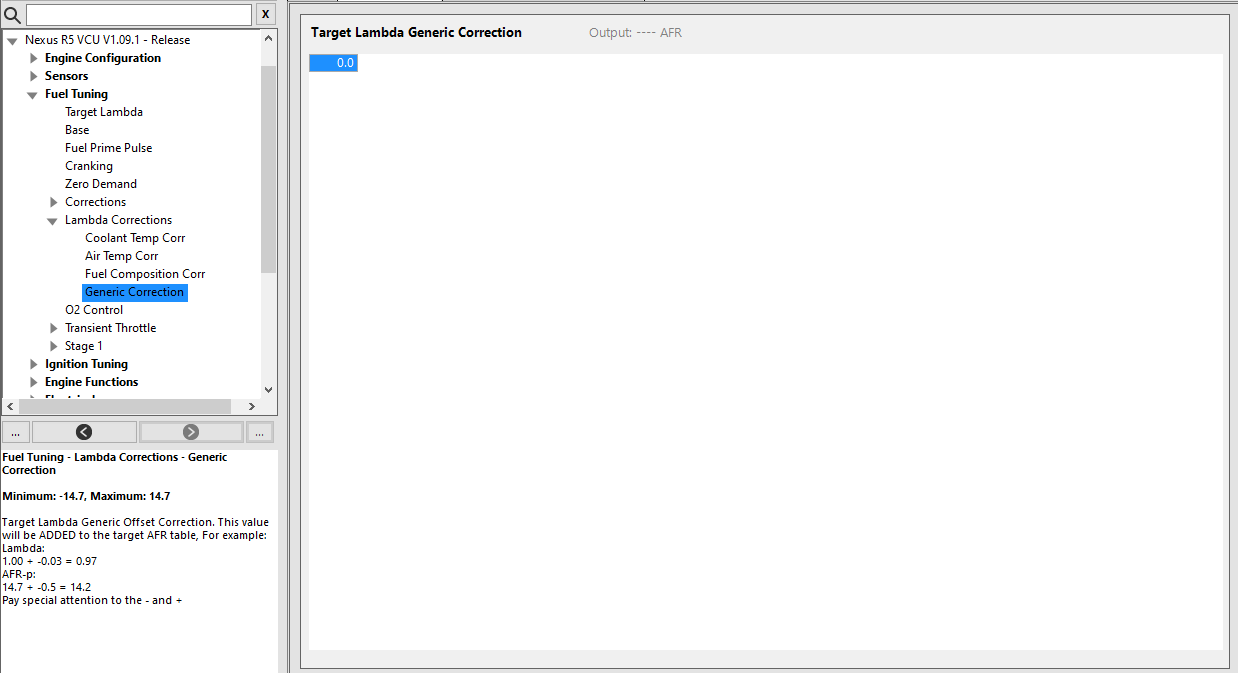

The Target Lambda Generic Correction table is a user-configurable table that allows configuration to be tailored to your needs. By default, this correct table contains only one value which will create an offset of the entire Target Lambda table.

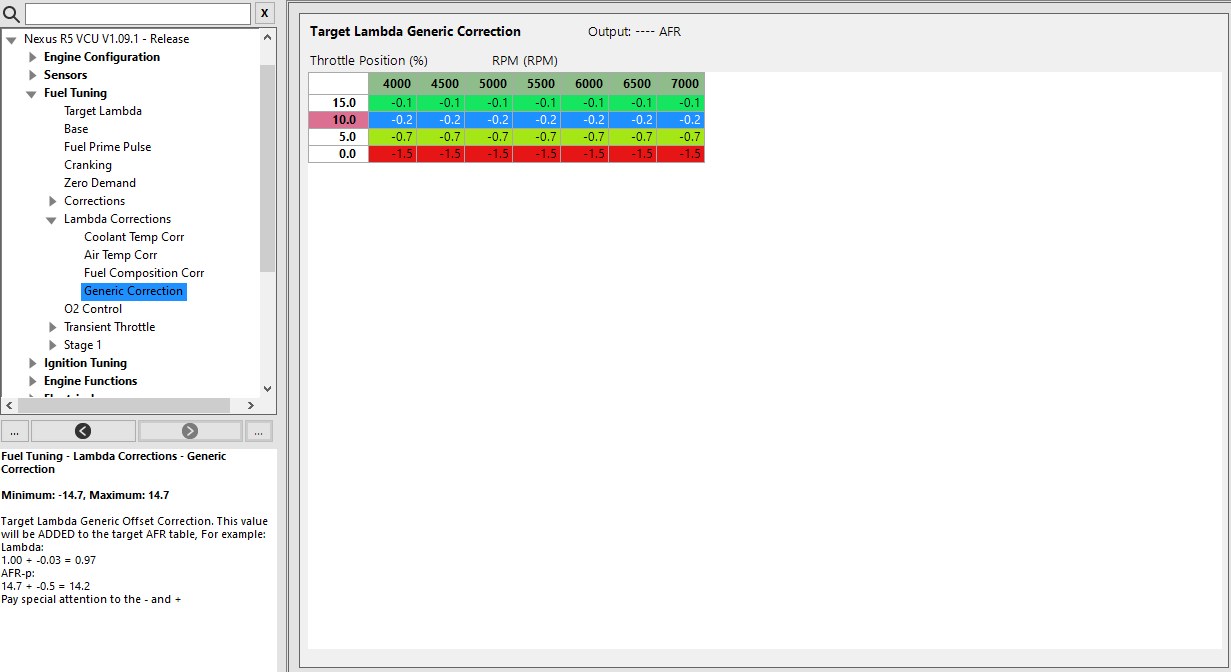

This Target Lambda Generic Correction table has been configured with the axis TPS and RPM to be used as an example only.
