Generic Timers

Generic Timers

A Generic Timer is used when a channel or function is required over a time base, and activated by another channel or condition. Typical uses for Generic Timers are for drag racing launch programming, or programming delays for custom functions.

Page Contents

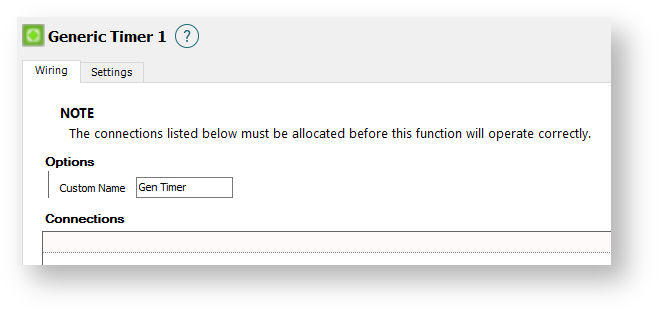

Wiring Tab

Options

Custom Name

Enter a name that is to be used for the Generic Timer. This name will be used when searching for channels throughout the system.

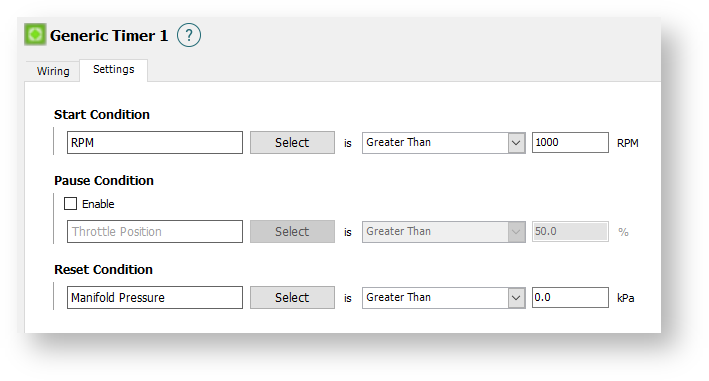

Settings Tab

Start Condition

Select which ECU channel and its conditions will start the timer.

Select

Selection of the ECU channel to be used to start the timer.

Maths

A selection of Equal To, Not Equal To, Greater Than, Less Than, Greater Than Or Equal To, Less Than Or Equal To that is to be used to start the timer.

Value

The value the maths must meet.

Pause Condition

Select which ECU channel and its conditions will pause the timer.

Enabled

Enable or Disable the ability to pause the timer if a certain condition is met.

Select

Selection of the ECU channel to be used to Pause the timer.

Maths

A selection of Equal To, Not Equal To, Greater Than, Less Than, Greater Than Or Equal To, Less Than Or Equal To that is to be used to pause the timer.

Value

The value the maths must meet

Reset Condition

Select which ECU channel and its condition will reset the timer, and allow the Generic Timer to start again if Start Conditions are met.

Select

Selection of the ECU channel to be used to reset the timer.

Maths

A selection of Equal To, Not Equal To, Greater Than, Less Than, Greater Than Or Equal To, Less Than Or Equal To that is to be used to reset the timer.

Value

The value the maths must meet.
