Haltech Dash CAN Protocol

Haltech ECU CAN Broadcast Protocol



Device

Version for Full Support*

Nexus Series ECU

1.24

Elite Series ECU

3.10

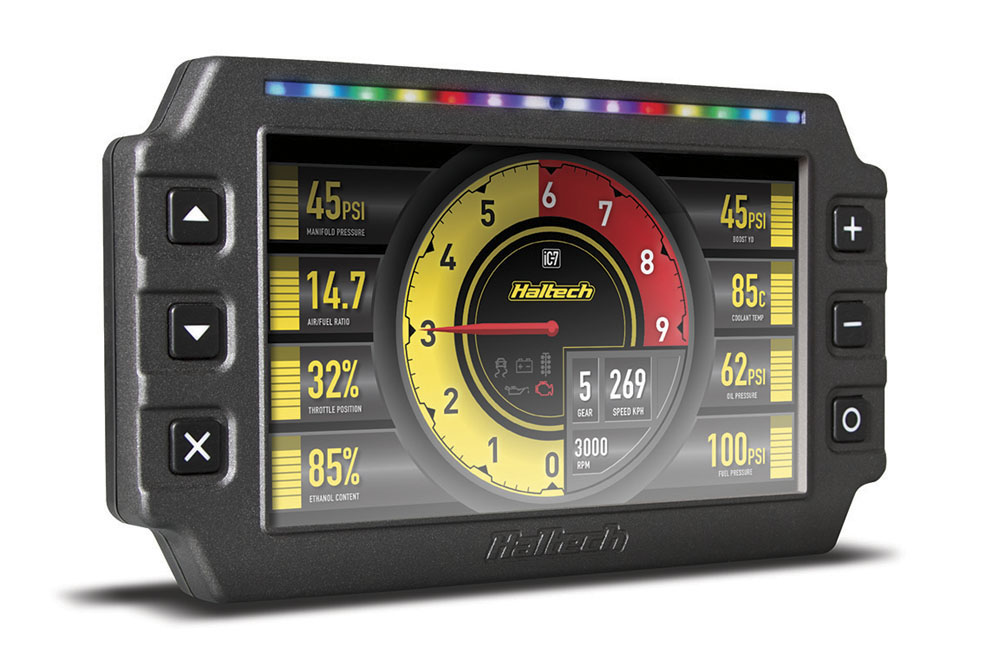

IC7 Dash

?

* Earlier versions support parts of this protocol. The most up-to-date ECU and dash firmware available will support most signals.


CAN I.D.

Rate (Hz)

Direction

Message Position

Sign

Channel

Units

Conversion from Raw

0x360

50

TX

0 - 1

Unsigned

RPM

RPM

y = x

2 - 3

Unsigned

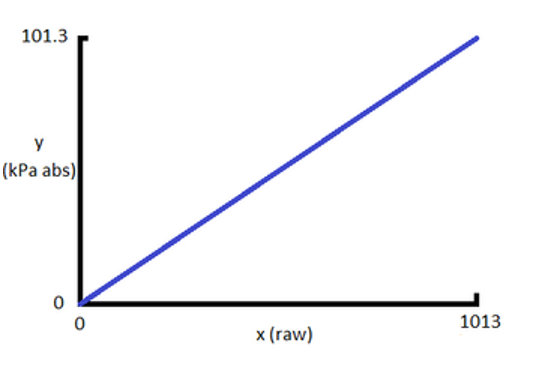

Manifold Pressure

kPa (Abs)

y = x/10

4 - 5

Unsigned

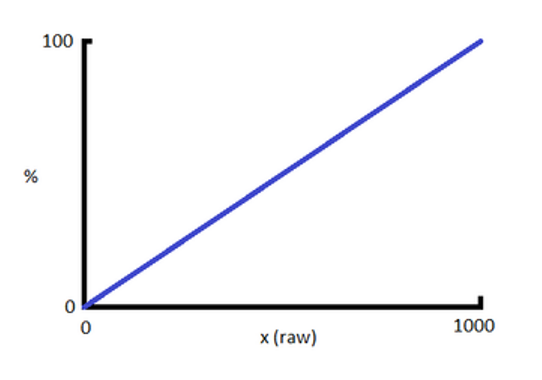

Throttle Position

%

y = x/10

6 - 7

Unsigned

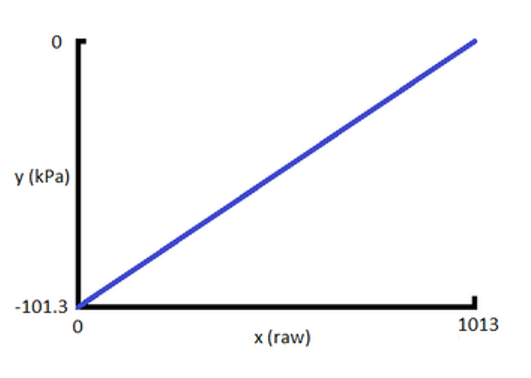

Coolant Pressure

kPa

y = x/10 - 101.3

0x361

50

TX

0 - 1

Unsigned

Fuel Pressure

kPa

y = x/10 - 101.3

2 - 3

Unsigned

Oil Pressure

kPa

y = x/10 - 101.3

4 - 5

Unsigned

Engine Demand

%

y = x/10

6 - 7

Unsigned

Wastegate Pressure

kPa

y = x/10 - 101.3

0x362

50

TX

0 - 1

Unsigned

Injection Stage 1 Duty Cycle

%

y = x/10

2 - 3

Unsigned

Injection Stage 2 Duty Cycle

%

y = x/10

4 - 5

Signed

Ignition Angle (Leading)

°

y = x/10

0x363

20

TX

0 - 1

Signed

Wheel Slip

km/h

y = x/10

2 - 3

Signed

Wheel Diff

km/h

y = x/10

4 - 5

6 - 7

Unsigned

Launch Control End RPM

RPM

y = x

0x364

50

TX

0 - 1

Unsigned

Injection Stage 1 Average Injection Time

ms

y = x/1000

2 - 3

Unsigned

Injection Stage 2 Average Injection Time

ms

y = x/1000

4 - 5

Unsigned

Injection Stage 3 Average Injection Time

ms

y = x/1000

6 - 7

Unsigned

Injection Stage 4 Average Injection Time

ms

y = x/1000

0x368

20

TX

0 - 1

Unsigned

Wideband Sensor 1

λ

y = x/1000

2 - 3

Unsigned

Wideband Sensor 2

λ

y = x/1000

4 - 5

Unsigned

Wideband Sensor 3

λ

y = x/1000

6 - 7

Unsigned

Wideband Sensor 4

λ

y = x/1000

0x369

20

TX

0 - 1

Unsigned

Trigger System Error Count

raw

y = x

2 - 3

Unsigned

Trigger Counter

raw

y = x

6 - 7

Unsigned

Trigger Sync Level

raw

y = x

0x36A

20

TX

0 - 1

Unsigned

Knock Level 1

dB

y = x/100

2 - 3

Unsigned

Knock Level 2

dB

y = x/100

0x36B

20

TX

0 - 1

Unsigned

Brake Pressure Front

kPa

y = x - 101.3

2 - 3

Unsigned

NOS Pressure Sensor 1

kPa

y = x*11/50 - 101.3. Saturated at 14316.4 kPa,14417.7 kPa absolute, 2076 psi.

4 - 5

Unsigned

Turbo Speed Sensor 1

RPM

y = x*10

6 - 7

Signed

Lateral G

m/s2

y = x/10

0x36C

20

TX

0 - 1

Unsigned

Wheel Speed Front Left

km/h

y = x/10

2 - 3

Unsigned

Wheel Speed Front Right

km/h

y = x/10

4 - 5

Unsigned

Wheel Speed Rear Left

km/h

y = x/10

6 - 7

Unsigned

Wheel Speed Rear Right

km/h

y = x/10

0x36D

20

TX

4 - 5

Signed

Exhaust Cam Angle 1

°

y = x/10

6 - 7

Signed

Exhaust Cam Angle 2

°

y = x/10

0x36E

20

TX

0 - 1

Unsigned

Engine Limiting Active

boolean

0=Off, 1=On

2 - 3

Signed

Launch Control Ignition Retard

°

y = x/10

4 - 5

Signed

Launch Control Fuel Enrich

%

y = x/10

6 - 7

Signed

Longitudinal G

m/s2

y = x/10

0x36F

20

TX

0 - 1

Unsigned

Generic Output 1 Duty Cycle

%

y = x/10

2 - 3

Unsigned

Boost Control Output

%

y = x/10

0x370

20

TX

0 - 1

Unsigned

Vehicle Speed

km/h

y = x/10

4 - 5

Signed

Intake Cam Angle 1

°

y = x/10

6 - 7

Signed

Intake Cam Angle 2

°

y = x/10

0x371

10

TX

0 - 1

Unsigned

Fuel Flow

cc/min

y = x

2 - 3

Unsigned

Fuel Flow Return

cc/min

y = x

0x372

10

TX

0 - 1

Unsigned

Battery Voltage

Volts

y = x/10

4 - 5

Unsigned

Target Boost Level

kPa

y = x/10

6 - 7

Unsigned

Barometric Pressure

kPa (Abs)

y = x/10

0x373

10

TX

0 - 1

Unsigned

EGT Sensor 1

K

y = x/10

2 - 3

Unsigned

EGT Sensor 2

K

y = x/10

4 - 5

Unsigned

EGT Sensor 3

K

y = x/10

6 - 7

Unsigned

EGT Sensor 4

K

y = x/10

0x374

10

TX

0 - 1

Unsigned

EGT Sensor 5

K

y = x/10

2 - 3

Unsigned

EGT Sensor 6

K

y = x/10

4 - 5

Unsigned

EGT Sensor 7

K

y = x/10

6 - 7

Unsigned

EGT Sensor 8

K

y = x/10

0x375

10

TX

0 - 1

Unsigned

EGT Sensor 9

K

y = x/10

2 - 3

Unsigned

EGT Sensor 10

K

y = x/10

4 - 5

Unsigned

EGT Sensor 11

K

y = x/10

6 - 7

Unsigned

EGT Sensor 12

K

y = x/10

0x376

10

TX

0 - 1

Unsigned

Ambient Air Temperature

K

y = x/10

2 - 3

Signed

Relative Humidity

%

y = x/10

4 - 5

Unsigned

Specific Humidity

ppm

y = x*100

6 - 7

Unsigned

Absolute Humidity

g/m3

y = x/10

0x3E0

5

TX

0 - 1

Unsigned

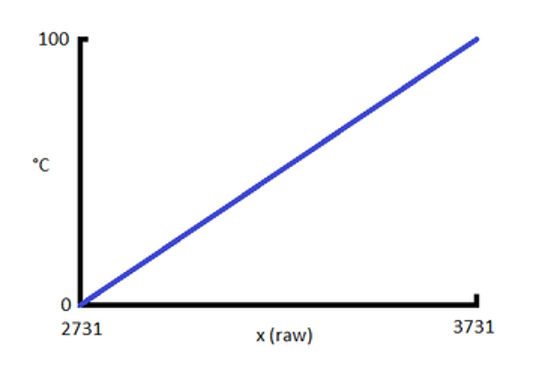

Coolant Temperature

K

y = x/10

2 - 3

Unsigned

Air Temperature

K

y = x/10

4 - 5

Unsigned

Fuel Temperature

K

y = x/10

6 - 7

Unsigned

Oil Temperature

K

y = x/10

0x3E1

5

TX

0 - 1

Unsigned

Gearbox Oil Temperature

K

y = x/10

2 - 3

Unsigned

Diff Oil Temperature

K

y = x/10

4 - 5

Unsigned

Fuel Composition

%

y = x/10

0x3E2

5

TX

0 - 1

Unsigned

Fuel Level

L

y = x/10

0x3E3

5

TX

0 - 1

Signed

Fuel Trim Short Term Bank 1

%

y = x/10

2 - 3

Signed

Fuel Trim Short Term Bank 2

%

y = x/10

4 - 5

Signed

Fuel Trim Long Term Bank 1

%

y = x/10

6 - 7

Signed

Fuel Trim Long Term Bank 2

%

y = x/10

0x3E4

5

TX

1:7

Unsigned

Neutral Switch

boolean

0=Off, 1=On

1:6

Unsigned

Reverse Switch

boolean

0=Off, 1=On

1:5

Unsigned

Gear Switch

boolean

0=Off, 1=On

1:4

Unsigned

Decel Cut Active

boolean

0=Off, 1=On

1:3

Unsigned

Transient Throttle Active

boolean

0=Off, 1=On

1:2

Unsigned

Brake Pedal Switch

boolean

0=Off, 1=On

1:1

Unsigned

Clutch Switch

boolean

0=Off, 1=On

1:0

Unsigned

Oil Pressure Light

boolean

0=Off, 1=On

2:7

Unsigned

Launch Control Active

boolean

0=Off, 1=On

2:6

Unsigned

Launch Control Switch

boolean

0=Off, 1=On

2:5

Unsigned

Aux RPM Limiter Active

boolean

0=Off, 1=On

2:3

Unsigned

Flat Shift Switch

boolean

0=Off, 1=On

2:1

Unsigned

Torque Reduction Active

boolean

0=Off, 1=On

3:7

Unsigned

Traction Control Enabled

boolean

0=Off, 1=On. See Traction Control States section.

3:6

Unsigned

Traction Control Active

boolean

0=Off, 1=On. See Traction Control States section.

3:5

Unsigned

Air Con Request

boolean

0=Off, 1=On

3:4

Unsigned

Air Con Output

boolean

0=Off, 1=On

3:3

Unsigned

Themo-fan 4 On

boolean

0=Off, 1=On

3:2

Unsigned

Thermo-fan 3 On

boolean

0=Off, 1=On

3:1

Unsigned

Thermo-fan 2 On

boolean

0=Off, 1=On

3:0

Unsigned

Themo-fan 1 On

boolean

0=Off, 1=On

4

Signed

Rotary Trim Pot 1

raw

y = x

5

Signed

Rotary Trim Pot 2

raw

y = x

6

Signed

Rotary Trim Pot 3

raw

y = x

7:7

Unsigned

Check Engine Light

boolean

0=Off, 1=On

7:6

Unsigned

Battery Light Active

boolean

0=Off, 1=On

7:1

Unsigned

Hand Brake State

boolean

0=Off, 1=On

7:0

Unsigned

Traction Control Light

boolean

0=Off, 1=On. See Traction Control States section.

0x3E5

50

TX

0

Unsigned

Ignition Switch

boolean

0=Off, 1=On

1

Unsigned

Turbo Timer - Time Remaining

s

y = x

2

Unsigned

Turbo Timer - Engine Time Remaining

s

y = x

3:7

-

-

-

3:6

Unsigned

Pit Lane Speed Limiter Error

enum

0=OK,1=Error

3:5

Unsigned

Pit Lane Speed Limiter Active

enum

0=Inactive,1=Active

3:4

Unsigned

Pit Lane Speed Limiter Switch State

boolean

0=Off, 1=On

3:3

-

-

-

3:2

Unsigned

ABS Error

enum

0=OK,1=Error

3:1

Unsigned

ABS Active

enum

0=Inactive,1=Active

3:0

Unsigned

ABS Armed

enum

0=Not Armed,1=Armed

4 - 5

Signed

Steering Wheel Angle

°

y = x/10

6 - 7

Unsigned

Driveshaft RPM

RPM

y = x

0x3E6

20

TX

0 - 1

Unsigned

NOS Pressure Sensor 2

kPa

y = x*11/50 - 101.3. Saturated at 14316.4 kPa,14417.7 kPa absolute, 2076 psi.

2 - 3

Unsigned

NOS Pressure Sensor 3

kPa

y = x*11/50 - 101.3. Saturated at 14316.4 kPa,14417.7 kPa absolute, 2076 psi.

4 - 5

Unsigned

NOS Pressure Sensor 4

kPa

y = x*11/50 - 101.3. Saturated at 14316.4 kPa,14417.7 kPa absolute, 2076 psi.

6 - 7

Unsigned

Turbo Speed Sensor 2

RPM

y = x*10

0x3E7

20

TX

0 - 1

Unsigned

Generic Sensor 1

See Generic Sensors.

2 - 3

Unsigned

Generic Sensor 2

See Generic Sensors.

4 - 5

Unsigned

Generic Sensor 3

See Generic Sensors.

6 - 7

Unsigned

Generic Sensor 4

See Generic Sensors.

0x3E8

20

TX

0 - 1

Unsigned

Generic Sensor 5

See Generic Sensors.

2 - 3

Unsigned

Generic Sensor 6

See Generic Sensors.

4 - 5

Unsigned

Generic Sensor 7

See Generic Sensors.

6 - 7

Unsigned

Generic Sensor 8

See Generic Sensors.

0x3E9

20

TX

0 - 1

Unsigned

Generic Sensor 9

See Generic Sensors.

2 - 3

Unsigned

Generic Sensor 10

See Generic Sensors.

4 - 5

Unsigned

Target Lambda

λ

y = x/1000

6:7

Unsigned

Nitrous Stage 1 Output State

boolean

0=Off, 1=On

6:6

Unsigned

Nitrous Stage 2 Output State

boolean

0=Off, 1=On

6:5

Unsigned

Nitrous Stage 3 Output State

boolean

0=Off, 1=On

6:4

Unsigned

Nitrous Stage 4 Output State

boolean

0=Off, 1=On

6:3

Unsigned

Nitrous Stage 5 Output State

boolean

0=Off, 1=On

6:2

Unsigned

Nitrous Stage 6 Output State

boolean

0=Off, 1=On

6:1

Unsigned

Water Injection Advanced Output State

boolean

0=Off, 1=On

7

Signed

Torque Management Knob

raw

y = x

0x3EA

50

TX

0 - 1

Unsigned

Gearbox Line Pressure

kPa

y = x/10 - 101.3

2 - 3

Unsigned

Injection Stage 3 Duty Cycle

%

y = x/10

4 - 5

Unsigned

Injection Stage 4 Duty Cycle

%

y = x/10

6 - 7

Unsigned

Crank Case Pressure

kPa

y = x/10 - 101.3

0x3EB

50

TX

0 - 3

Unsigned

Race Timer

ms

y = x

4 - 5

Signed

Ignition Angle Bank 1

°

y = x/10

6 - 7

Signed

Ignition Angle Bank 2

°

y = x/10

0x3EC

50

TX

0 - 1

Signed

Torque Management Driveshaft RPM Target

RPM

y = x

2 - 3

Signed

Torque Management Driveshaft RPM Target Error

RPM

y = x

4 - 5

Signed

Torque Management Driveshaft RPM Target Error Ignition Correction

°

y = x/10

6 - 7

Signed

Torque Management Driveshaft RPM Timed Ignition Correction

°

y = x/10

0x3ED

50

TX

0 - 1

Signed

Torque Management Combined Ignition Correction

°

y = x/10

0x3EE

20

TX

0 - 1

Unsigned

Wideband Sensor 5

λ

y = x/1000

2 - 3

Unsigned

Wideband Sensor 6

λ

y = x/1000

4 - 5

Unsigned

Wideband Sensor 7

λ

y = x/1000

6 - 7

Unsigned

Wideband Sensor 8

λ

y = x/1000

0x3EF

20

TX

0 - 1

Unsigned

Wideband Sensor 9

λ

y = x/1000

2 - 3

Unsigned

Wideband Sensor 10

λ

y = x/1000

4 - 5

Unsigned

Wideband Sensor 11

λ

y = x/1000

6 - 7

Unsigned

Wideband Sensor 12

λ

y = x/1000

0x3F0

50

TX

0 - 1

Unsigned

Shock Travel Sensor Front Left (Uncalibrated)

mm

y = x / 10

2 - 3

Unsigned

Shock Travel Sensor Front Right (Uncalibrated)

mm

y = x / 10

4 - 5

Unsigned

Shock Travel Sensor Rear Left (Uncalibrated)

mm

y = x / 10

6 - 7

Unsigned

Shock Travel Sensor Rear Right (Uncalibrated)

mm

y = x / 10

0x3F1

50

TX

0 - 1

Signed

Shock Travel Sensor Front Left

mm

y = x / 10

2 - 3

Signed

Shock Travel Sensor Front Right

mm

y = x / 10

4 - 5

Signed

Shock Travel Sensor Rear Left

mm

y = x / 10

6 - 7

Signed

Shock Travel Sensor Rear Right

mm

y = x / 10

0x469

5

TX

0 - 1

Unsigned

ECU Temperature

K

y = x/10

0x470

20

TX

0 - 1

Unsigned

Wideband Overall

λ

y = x/1000

2 - 3

Unsigned

Wideband Bank 1

λ

y = x/1000

4 - 5

Unsigned

Wideband Bank 2

λ

y = x/1000

6

Signed

Gear Selector Position

enum

Haltech Special Values

7

Signed

Gear - Can be combined with selector pos

enum

Haltech Special Values

0x471

50

TX

0 - 1

Signed

Injector Pressure Differential

kPa

y = x/10

2 - 3

Unsigned

Accelerator Pedal Position

%

y = x/10

4 - 5

Unsigned

Exhaust Manifold Pressure

kPa

y = x/10

0x472

20

TX

0 - 1

Unsigned

Cruise Control Target Speed

km/h

y = x/10

2 - 3

Unsigned

Cruise Control Last Target Speed

km/h

y = x/10

4 - 5

Signed

Cruise Control Speed Error

km/h

y = x/10

6:7 - 6:4

Unsigned

Cruise Control Controller State

enum

0=Disabled, 1=Inactive, 2=Cruising, 3=Accelerating, 4=Decelerating

6:3 - 7:0

Unsigned

Cruise Control Input State

bit-field

0=Unused, 1=Disable, 2=Enable, 3=Enable/Disable, 4=Cancel, 8=Set, 12=Set/Cancel, 16=Resume, 20=Resume/Cancel, 32=Accel, 64=Decel, 76=Set/Coast/Cancel, 84=Resume/Coast/Cancel, 128=Increment, 168=Set/Accel/+, 176=Resume/Accel/+, 256=Decrement, 328=Set/Coast/-, 336=Resume/Coast/-, 512=Rest Position

0x473

10

TX

0 - 3

Unsigned

Total Fuel Used

cc

y = x

4:7

Unsigned

Rolling Antilag Switch State

boolean

0=Off, 1=On

4:6

Unsigned

Antilag Switch State

boolean

0=Off, 1=On

4:5

Unsigned

Antilag Output State

boolean

0=Off, 1=On

4:4

Unsigned

Traction Control Switch State

boolean

0=Off, 1=On

4:3

Unsigned

Primary Fuel Pump Output State

boolean

0=Off, 1=On

4:2

Unsigned

Aux 1 Fuel Pump Output State

boolean

0=Off, 1=On

4:1

Unsigned

Aux 2 Fuel Pump Output State

boolean

0=Off, 1=On

4:0

Unsigned

Aux 3 Fuel Pump Output State

boolean

0=Off, 1=On

5:7

Unsigned

Nitrous Enable 1 Switch State

boolean

0=Off, 1=On

5:6

Unsigned

Nitrous Enable 1 Output State

boolean

0=Off, 1=On

5:5

Unsigned

Nitrous Enable 2 Switch State

boolean

0=Off, 1=On

5:4

Unsigned

Nitrous Enable 2 Output State

boolean

0=Off, 1=On

5:3

Unsigned

Nitrous Enable 3 Switch State

boolean

0=Off, 1=On

5:2

Unsigned

Nitrous Enable 3 Output State

boolean

0=Off, 1=On

5:1

Unsigned

Nitrous Enable 4 Switch State

boolean

0=Off, 1=On

5:0

Unsigned

Nitrous Enable 4 Output State

boolean

0=Off, 1=On

6:7

Unsigned

Nitrous Override 1 Switch State

boolean

0=Off, 1=On

6:6

Unsigned

Nitrous Override 1 Output State

boolean

0=Off, 1=On

6:5

Unsigned

Nitrous Override 2 Switch State

boolean

0=Off, 1=On

6:4

Unsigned

Nitrous Override 2 Output State

boolean

0=Off, 1=On

6:3

Unsigned

Nitrous Override 3 Switch State

boolean

0=Off, 1=On

6:2

Unsigned

Nitrous Override 3 Output State

boolean

0=Off, 1=On

6:1

Unsigned

Nitrous Override 4 Switch State

boolean

0=Off, 1=On

6:0

Unsigned

Nitrous Override 4 Output State

boolean

0=Off, 1=On

7:7

Unsigned

Water Injection Advanced Enable Switch State

boolean

0=Off, 1=On

7:6

Unsigned

Water Injection Advanced Enable Output State

boolean

0=Off, 1=On

7:5

Unsigned

Water Injection Advanced Override Switch State

boolean

0=Off, 1=On

7:4

Unsigned

Water Injection Advanced Override Output State

boolean

0=Off, 1=On

7:3 - 7:0

Unsigned

Cut Percentage Method

enum

0 = No Cut
1 = Fuel
2 = Ignition
3 = Fuel and Ignition

0x474

20

TX

0 - 1

Signed

Vertical G

m/s2

y = x/10

2 - 3

Signed

Pitch Rate

deg/s

y = x/10

4 - 5

Signed

Roll Rate

deg/s

y = x/10

6 - 7

Signed

Yaw Rate

deg/s

y = x/10

0x475

5

TX

0 - 1

Unsigned

Primary Fuel Pump Duty Cycle

%

y = x/10

2 - 3

Unsigned

Aux 1 Fuel Pump Duty Cycle

%

y = x/10

4 - 5

Unsigned

Aux 2 Fuel Pump Duty Cycle

%

y = x/10

6 - 7

Unsigned

Aux 3 Fuel Pump Duty Cycle

%

y = x/10

0x476

20

TX

0 - 1

Unsigned

Brake Pressure Rear

kPa

y = x - 101.3

2 - 3

Unsigned

Brake Pressure Front Ratio

%

y = x/10

4 - 5

Unsigned

Brake Pressure Rear Ratio

%

y = x/10

6 - 7

Signed

Brake Pressure Difference (Front minus Rear)

kPa (Abs)

y = x

0x477




10




TX




0 - 1

Unsigned

Engine Limiter Max RPM

RPM

y = x

1 - 2

Unsigned

Cut Percentage

%

y = x/10

4

Unsigned

Engine Limiter Function

enum

Engine Limiting Functions table

5

Unsigned

RPM Limiter Function

enum

Engine Limiting Functions table

6

Unsigned

Cut Percentage Function

enum

Engine Limiting Functions table

7:7 - 7:4

Unsigned

Engine Limiter Method

enum

0 = No Cut
1 = Fuel
2 = Ignition
3 = Fuel and Ignition

7:3 - 7:0

Unsigned

RPM Limiter Method

enum

0 = No Cut
1 = Fuel
2 = Ignition
3 = Fuel and Ignition

0x6F0

5

TX

0 - 1

Unsigned

Front Left Tyre Pressure

kPa

CAN Error Values table
otherwise: y = x/10 - 101.3

2 - 3

Unsigned

Front Right Tyre Pressure

kPa

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/10 - 101.3

4 - 5

Unsigned

Rear Left Tyre Pressure

kPa

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/10 - 101.3

6 - 7

Unsigned

Rear Right Tyre Pressure

kPa

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/10 - 101.3

0x6F1

5

TX

0 - 1

Unsigned

Front Left Tyre Temperature

K

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/10

2 - 3

Unsigned

Front Right Tyre Temperature

K

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/10

4 - 5

Unsigned

Rear Left Tyre Temperature

K

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/10

6 - 7

Unsigned

Rear Right Tyre Temperature

K

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/10

0x6F2

5

TX

0 - 1

Unsigned

Front Left Tyre Sensor Battery Voltage

V

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/1000

2 - 3

Unsigned

Front Right Tyre Sensor Battery Voltage

V

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/1000

4 - 5

Unsigned

Rear Left Tyre Sensor Battery Voltage

V

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/1000

6 - 7

Unsigned

Rear Right Tyre Sensor Battery Voltage

V

0 = error (can be No Signal, Calibrating or Device Timeout)
otherwise: y = x/1000

0x6F3

5

TX

0 - 1

Unsigned

Front Tyre Recommended Pressure

kPa

y = x/10 - 101.3

2 - 3

Unsigned

Rear Tyre Recommended Pressure

kPa

y = x/10 - 101.3

4:3

Unsigned

Rear Right Tyre Air Leak Detected

boolean

0=No Leak,1=Leak Detected

4:2

Unsigned

Rear Left Tyre Air Leak Detected

boolean

0=No Leak,1=Leak Detected

4:1

Unsigned

Front Right Tyre Air Leak Detected

boolean

0=No Leak,1=Leak Detected

4:0

Unsigned

Front Left Tyre Air Leak Detected

boolean

0=No Leak,1=Leak Detected

5

Unsigned

Engine Protection Severity Level

raw

0 - Idle, 1 - Level 1, 2 - Level 2, 3 - Level 3

6 - 7

Unsigned

Engine Protection Reason

enum

This value is hexadecimal, and represents the OBDII DTC.
The upper 2 bits determine which letter it is (0b00 = P, 0b01 = B, 0b10 = C, 0b11 = U). The remaining 14 bits, when viewed as hexadecimal are the number part of the code.
e.g. 0x2A00 = P2A00 = "Wideband 1 Sensor Failure. See Wideband O2 1 channel."

0x6F4

100

TX

0:0

Unsigned

Park Light State

boolean

0=Off, 1=On

0:1

Unsigned

Head Light State

boolean

0=Off, 1=On

0:2

Unsigned

High Beam Light State

boolean

0=Off, 1=On

0:3

Unsigned

Left Indicator State

boolean

0=Off, 1=On

0:4

Unsigned

Right Indicator State

boolean

0=Off, 1=On

0x6F6

5

TX

0 - 3

Signed

Total Fuel Used Since Trip 1 Reset

cc

y = x

4 - 7

Signed

Trip Meter 1

m

y = x

0x6F7

10

TX

0-3

Unsigned

Generic Output 1 - 20 States

bit-field

0 = Off, 1 = On (at least 0.1% duty cycle if in Duty Cycle mode, or at least 1 Hz if in Frequency mode)
Bit X = Generic output X+1

4 - 5

Unsigned

Calculated Air Temperature

K

y = x/10

6 - 7

Unsigned

Water Injection Advanced Solenoid Duty Cycle

%

y = x / 10

0x6F8

5

TX

0

Signed

Exhaust Cutout State

enum

-1: Input Error
0: Disabled
1: Closed
2: Opening
3: Open
4: Closing
5: Paused Part Way

1

Signed

Nitrous Bottle Opener State

enum

2

Signed

Generic Open Loop Motor Control 1 State

enum

3

Signed

Generic Open Loop Motor Control 2 State

enum

4

Signed

Generic Open Loop Motor Control 3 State

enum

5

Reserved for future use.

6

Reserved for future use.

7

Reserved for future use.

0x700

50

TX

0-1

Unsigned

Sends out HBO, HCO8, HCO25 information as per the PD16 to ECU protocol for the internal R5 PDM.

See (PD16 CAN Protocol) for more detailed info.

2-3

Unsigned

4-5

Unsigned

6-7

Unsigned


Notes

  • This protocol will have more things added in future. Non-Haltech products on the same CAN bus may cause CAN bus ID conflicts when that happens.
  • This protocol can change at Haltech's discretion.
  • The rates specified above are not guaranteed.


Traction Control States

Traction Control State channel

Raw

Enabled Bit

Active Bit

Light Bit

Notes

CAN ID

0x3E4

0x3E4

0x3E4

Byte:bit

3:7

3:6

7:0

Function Disabled

-1

Function disabled in the software

Idle

0

Enabled, slip is currently less than target.
Or Driven Wheel Speed is below Min setting.

Active

2

Slip is greater than target slip.

Action is being taken.
- PID control style has an RPM limiter active
- Cut Percentage style the cut percentage table is being obeyed.

Ramp Out

4

After being Active, the PID controller ramps the RPM limiter up while in this state.

Disabled

5

Disabled by the Traction Control Switch and/or Conditional Activation.
Light bit is on to warn the driver that the traction control is inactive.




Generic Sensors

Sensor Type

Unit

Scaling


Switch

0 = off, 1 = on

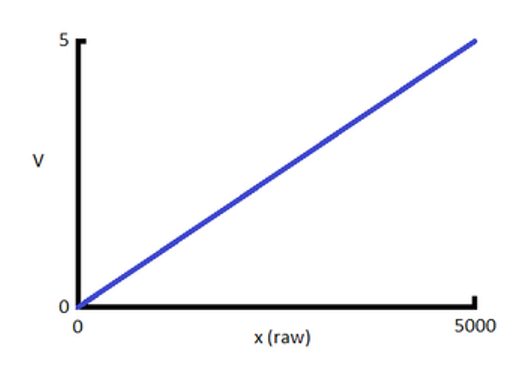

Voltage

V

y = x/1000

Pressure

kPa

y = x/10 - 101.3

kPa (abs)

y = x/10

Temperature

K

y = x/10

°C

y = x/10 - 273.1

°F

y = x*0.18 - 255.372

Percentage

%

y = x/10




For more information about the Haltech CAN Protocol specification, click on this link.

    • Related Articles

    • Haltech PD-16 CAN Protocol

      Multiplexing We're sending and receiving a lot of data. We'll multiplex our CAN messages to consume as few CAN IDs as possible. If a message is multiplexed then the first byte will be a multiplex ID used to identify the payload. The Multiplex ID has ...
    • Haltech CAN Protocol Specification

      Key Information The Haltech CAN bus operates at 1 MBit/s and uses 11-bit IDs, which are expressed in Hexadecimal. The first byte in a packet is considered byte 0, and the 8th byte is byte 7. The most significant bit in a byte is considered bit 7 and ...
    • How to Install a Standalone iC-7 Dash

      Whether it’s a mechanically injected monster, or a reliable, carbureted cruiser, the new Haltech iC-7 standalone “classic kit” is a great option for modernizing your dash cluster. When it came time to breathe new life into this classic Jeep Wagoneer, ...
    • Haltech ECU Comparison Table

      STILL UNSURE? If you’ve narrowed your choice down to a couple of ECUs but want to confirm you’ve made the right decision contact our Tech Support Hotline. Remember, our goal is not to just sell you any ECU, we want to provide you with an ECU that’s ...
    • Haltech uC-10 Display Dash

      Overview Innovation meets style with the latest addition to the Haltech digital dash lineup, the Haltech uC-10 Display Dash. This state-of-the-art digital dash is set to revolutionize the automotive world with its perfect blend of technology and ...
