Cylinders | 4 |
Displacement | Gen 1 - 1299cc Gen 2 - 1340cc |
Firing Order | 1243 |
Cylinder Orientation (from riders seat) | Cyl1 LHS |
Model Variants
Gen 1
1299cc
4x Injectors
Crank Trigger is 8x for MY99-01 and 24-1 for MY02-07 with both using Reluctor
Cam Sensor is Reluctor
Gen 2
8x injectors
Crank Trigger is 24-2 Reluctor
Cam Sensor is Hall Effect
Displacement increase to 1340cc

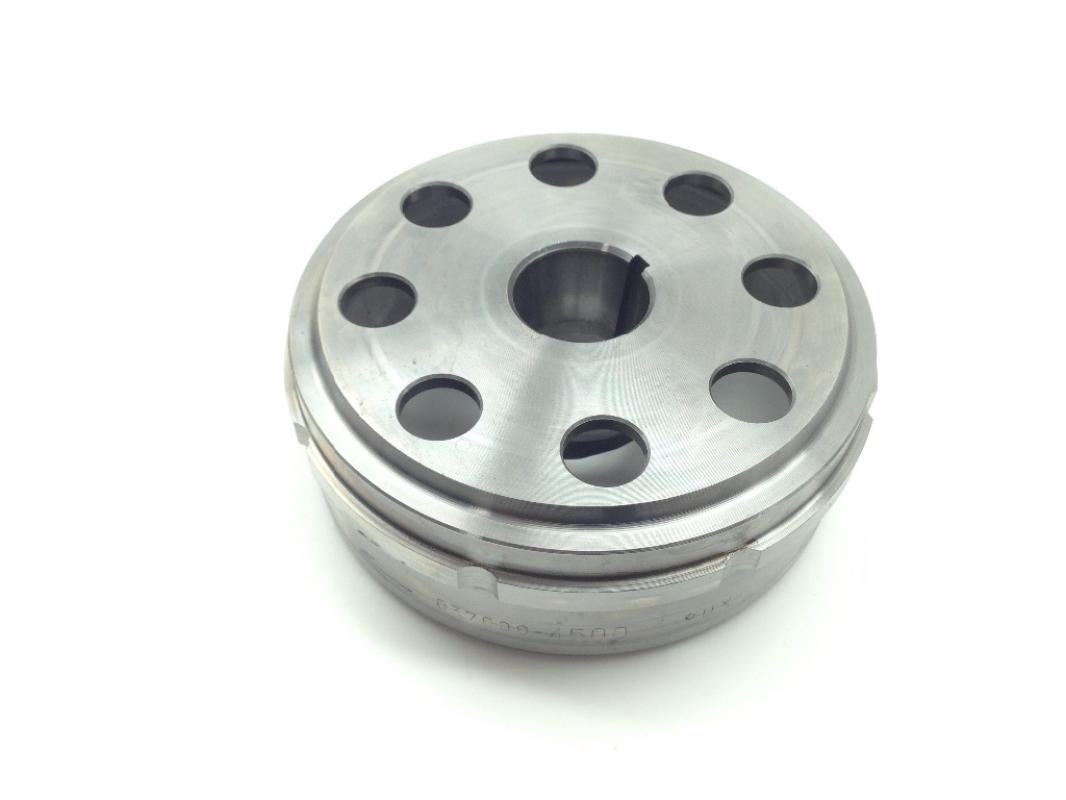

Crank Trigger

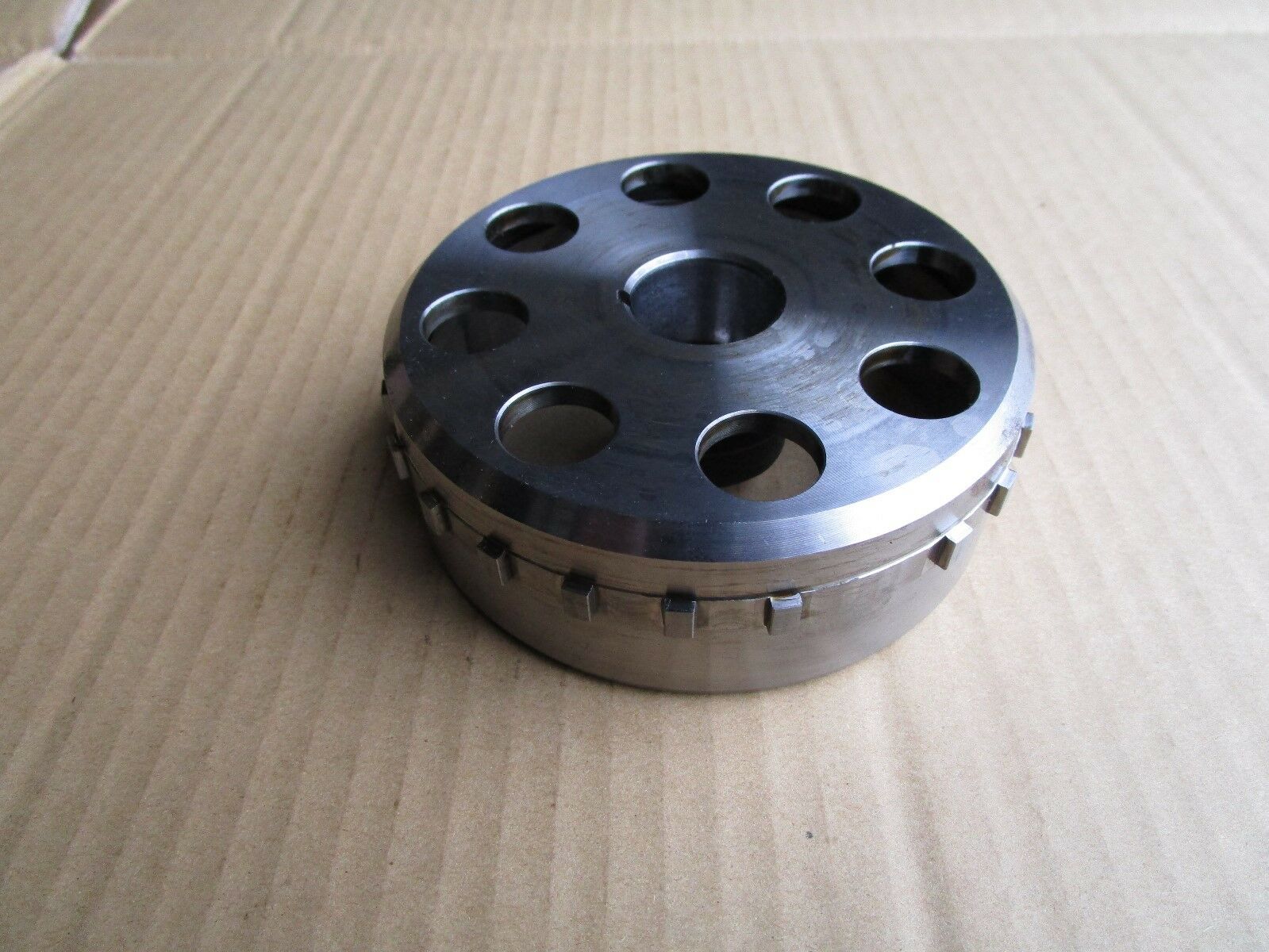

The crank trigger on all models is located on the flywheel/stator.
Gen 1
8x
24-1
Gen 2
24-2
OEM Crank Sensor Wiring | Haltech Crank Sensor Wiring |
Green (pin 14) | Trigger + (Yellow) |
Blue (pin 31) | Trigger - (Green) |
Cam Sensor
Gen 1
The Gen 1 Hayabusa uses a Reluctor cam sensor
Gen 2

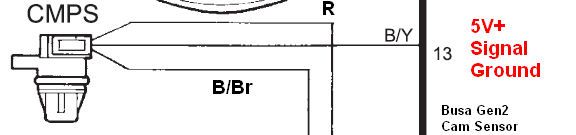

The Gen 2 Hayabusa uses a Hall Effect cam sensor powered from 5V+.
OEM Cam Sensor Wiring | Haltech Cam Sensor Wiring |
Red | 5V+ |
Black/Yellow | Home + |
Black/Brown | Signal Ground |
Trigger Configuration
Gen 1
1999-2001 8x Tooth

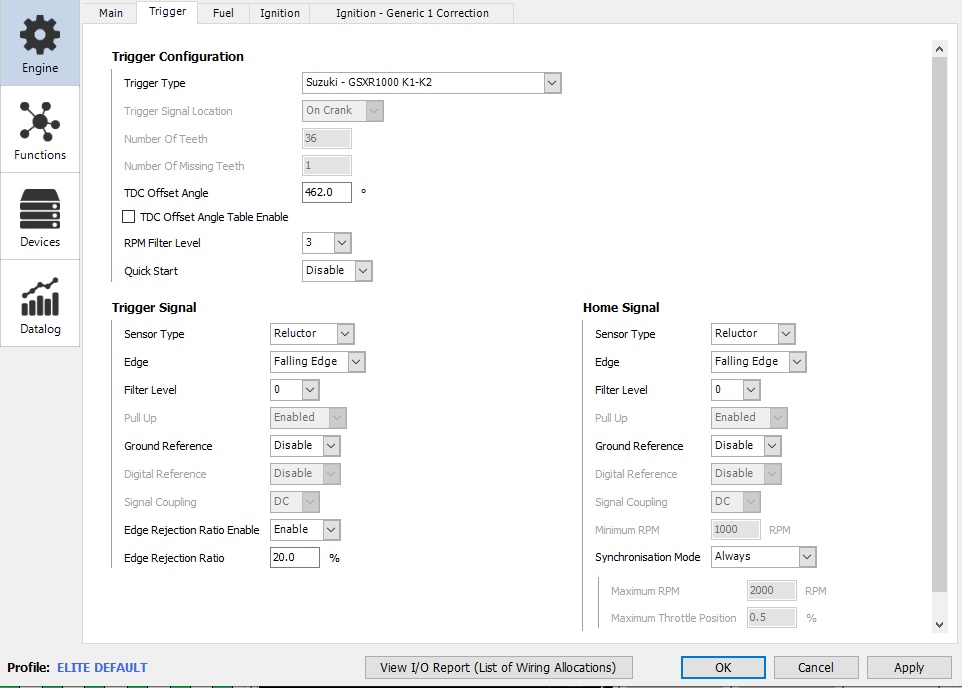

2002-2007 24-1 Tooth

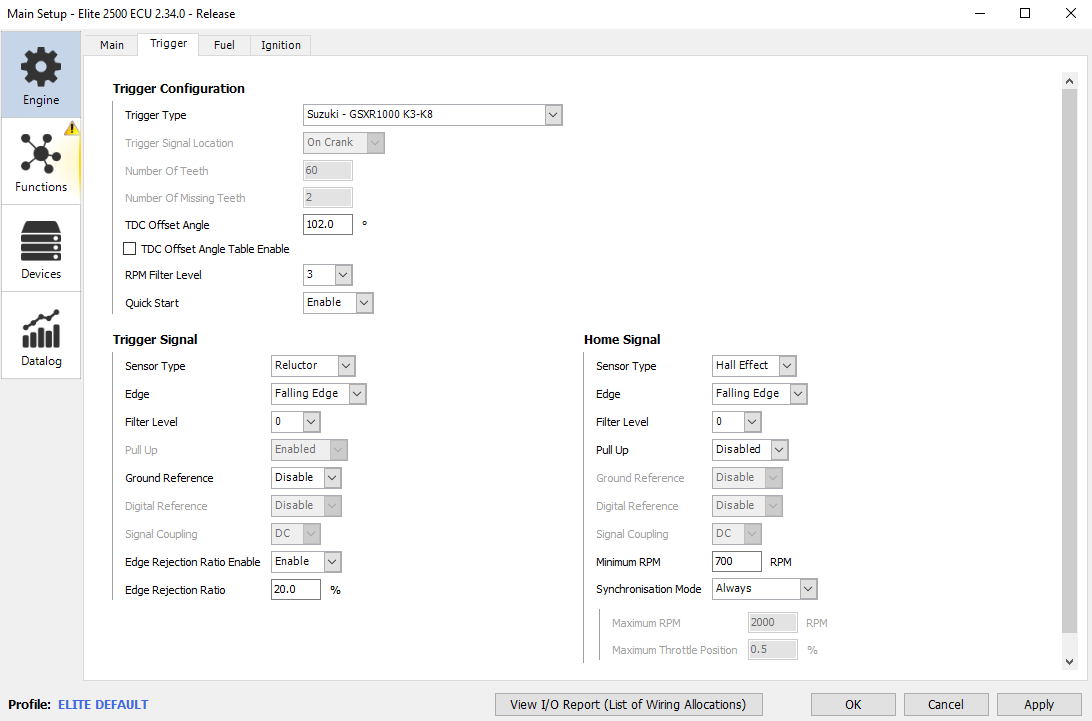

Gen 2
Injection System
Gen 1
The 1st generation Hayabusa has 4x injectors. Listed as 330cc/min.
Gen 2
The 2nd generation Hayabusa has a total of 8x injectors. 4x primary and 4x secondary injectors that are staged. All are listed as 280cc/min flow rate.
Ignition Coils
The igniters are built into the OEM ECU. To use the original ignition Denso 2-pin coils a 4ch external igniter (such as a Haltech HPI4) is required.
Dwell Time is 1.5ms@14V

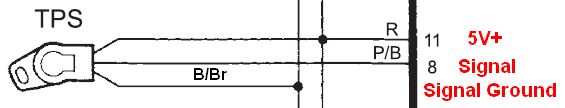

TPS
OEM Wiring | Haltech Wiring |
Red | 5V+ |
Purple/Black | Signal |
Black/Brown | Signal Ground |
MAP

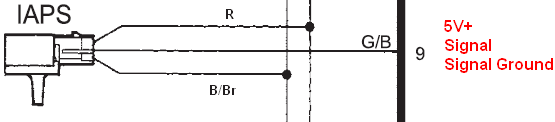

Suzuki labels this as the Inlet Air Pressure Sensor (IAPS)
OEM Wiring | Description |
Red | Signal Ground |
Green/Black | Signal |
Black/Brown | 5V+ |
Calibration: Use "xxxxxxxx.cal"

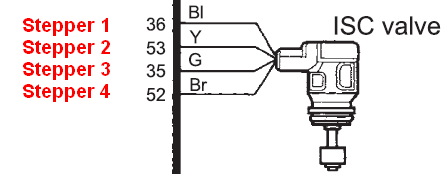

Idle Valve
The idle control system is a stepper motor type. This can be controlled by all 2-connector Elite ECU models.
OEM Wire Colour | Function | Haltech Connection |
White/Black | Stepper 1A | Stepper 1 |
Black/Light Green | Stepper 1B | Stepper 2 |
Purple/White | Stepper 2A | Stepper 3 |
Green | Stepper 2B | Stepper 4 |
Sub-Throttle System
Both models come with a sub-throttle system common to most motorbikes. This incorporates a second set of throttle blades controlled via stepper motor located between the air filter and the cable operated throttle blades. A position sensor is used to allow closed loop feedback control, similar to a DBW system. This allows the ECU to override the riders input to reduce power under certain conditions.
Position Sensor
OEM Wiring | Haltech Wiring |
Red | 5V+ |
Yellow/White | Signal |
Black/Brown | Signal Ground |
Stepper Motor
OEM Wire Colour | Function | Haltech Connection |
White/Black | Stepper 1A | Stepper 1 |
Black/Light Green | Stepper 1B | Stepper 2 |
Purple/White | Stepper 2A | Stepper 3 |
Green | Stepper 2B | Stepper 4 |
Coolant Temperature
Wiring is not polarity sensitive
Calibration: Use "xxxxx.cal"
Created for Haltech ECUs using a 1k pullup to 5V
Air Temp
Wiring is not polarity sensitive.
Calibration: Use "Temperature - xxxxxx.cal"
Created for Haltech ECUs using a 1k pullup to 5V
O2 Sensor
A narrowband O2 Sensor comes standard on these models.
Vehicle Speed Sensor
Both generations of this vehicle have a vehicle speed sensor is of a Hall Effect type. The signal is wired to the dash, and the dash sends a serial signal back to the OEM ECU.
To obtain a speed signal for the Haltech ECU an SPI will need to be shared with the signal going to the dash.
Gear Position Sensor
Both generations of this vehicle incorporate a gear position sensor. This can be connected to a spare AVI.

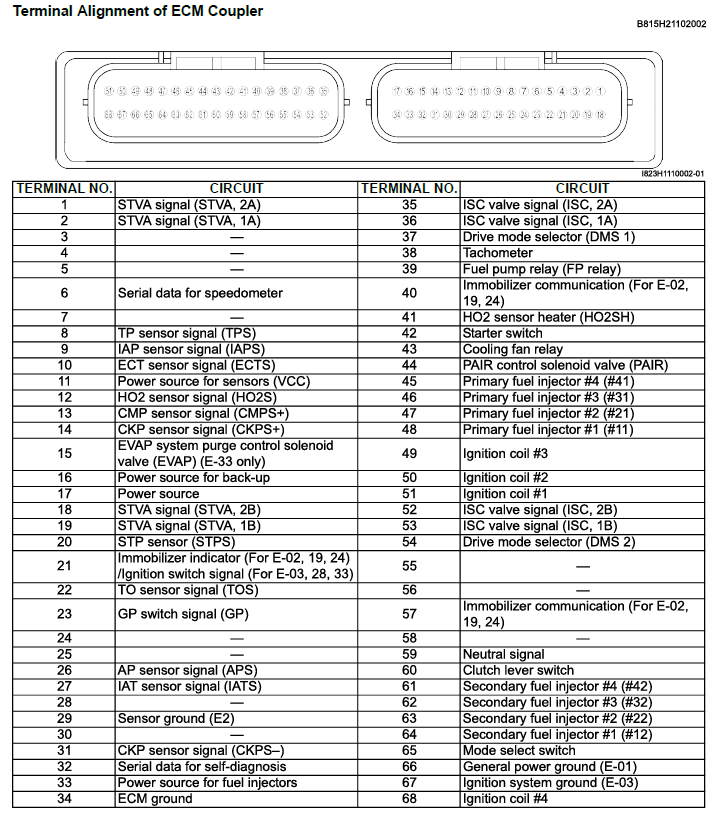

Gen 1

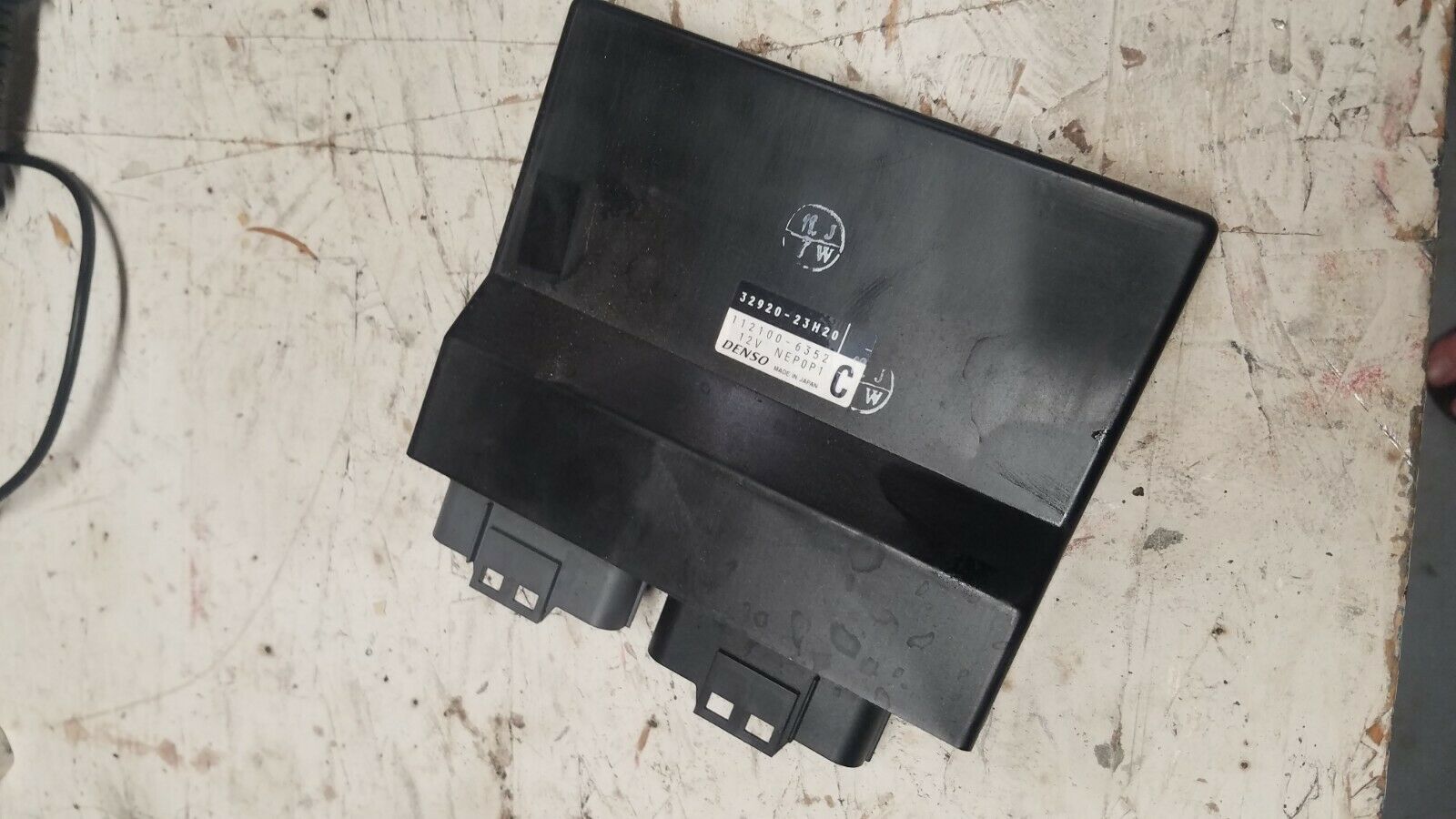

The Gen 1 ECU uses the same ECU connectors as the Haltech Elite 2-connector ECU range.
1998-2001 use a 16-bit ECU with an 8x crank trigger
2002-2007 use a 32-bit ECU with a 24-1 crank trigger
Gen 2
Base Maps
Coming soon...
