Honda AP1 S2000 Coolant Gauge Wiring
Connections

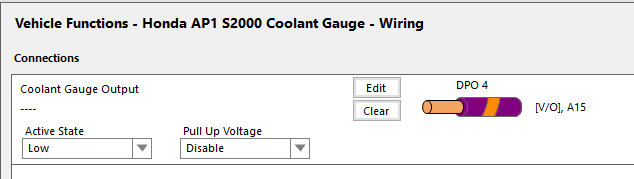

Coolant Gauge Output
Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for the Coolant Gauge.
Controls the whether the output is normal or inverted. Low will ground the output wire when the output is set to be On. Setting to High will invert this signal, with the output wire being grounded when the output is set to be Off, and not grounded when it is set to be On. (Default = Low)
