Honda AP1 S2000 Coolant Gauge
About the Honda S2000 Coolant Gauge
The S2000 coolant gauge feature is specifically design to support the led coolant gauge on the dash of the Honda S2000. The dash has 6 segments or LEDs which indicate once a temperature threshold has been exceeded as a visual indication of the engines temperature.

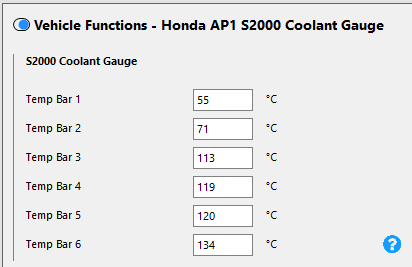

S2000 Coolant Gauge Page
Temperature 1
Enter the coolant temperature above which you want the first LED on the dash to turn on at.
Temperature 2
Enter the coolant temperature above which you want the second LED on the dash to turn on at.
Temperature 3
Enter the coolant temperature above which you want the third LED on the dash to turn on at.
Temperature 4
Enter the coolant temperature above which you want the fourth LED on the dash to turn on at.
Temperature 5
Enter the coolant temperature above which you want the fifth LED on the dash to turn on at.
Temperature 6
Enter the coolant temperature above which you want the sixth LED on the dash to turn on at.
