Idle Up

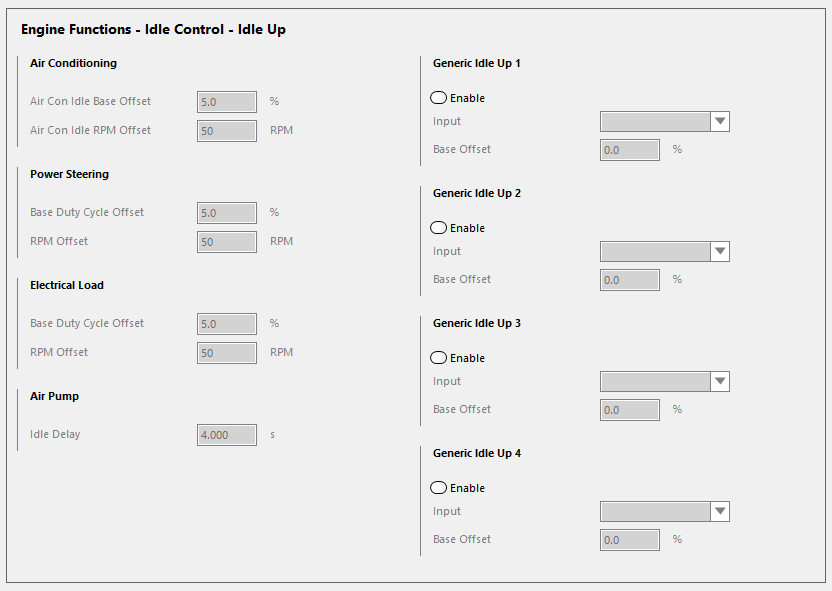

Idle Up



Air Conditioning

Air Con Idle Base Offset - Active only when Air Conditioner has been enabled. The Base Duty will be increased by this amount of duty cycle when the Air Conditioner Output is active.
Air Con Idle RPM Offset - Active only when Air Conditioner has been enabled. The Target RPM will be increased by this amount of RPM when the Air Conditioner Output is active.

Power Steering

Base Duty Cycle Offset - Active only when the Power Steering Switch has been enabled. The Base Duty will be increased by this percentage of duty cycle when the Power Steering Switch is active.
RPM Offset - Active only when the Power Steering Switch has been enabled. The Target RPM will be increased by this amount of RPM when the Power Steering Switch is active.

Electrical Load

Base Duty Cycle Offset - Active only when the Electrical Load Switch has been enabled. The Base Duty will be increased by this percentage of duty cycle when the Electrical Load is active and signalling that there is a load significant enough to affect Idle (e.g. headlights).
RPM Offset - Active only when the Electrical Load Switch has been enabled. The Target RPM will be increased by this amount of RPM when the Electrical Load is active and signalling that there is a load significant enough to affect Idle (e.g. headlights).

Air Pump

Idle Delay - The delay time used to allow idle to stabilise, before the air pump puts a load on the engine.

Generic Idle Up

The input must be configured as a Generic Sensor.
Enable - Enabled or Disables the Generic Idle Up.
Input - Select the Generic Sensor to be used for Idle Up.
Base Offset - The amount of duty to be added to the Base Duty while the Generic Idle Up is active.
