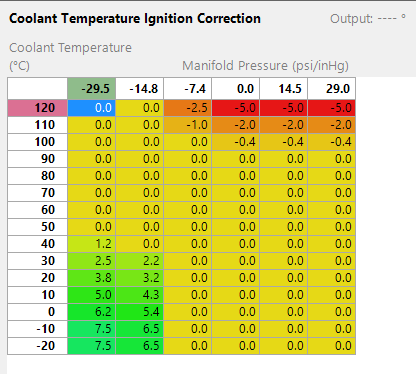

Coolant Temperature Ignition Correction

Coolant Temp Correction

This table controls how many degrees of ignition timing correction will be applied for a given Coolant Temperature, and is often mapped against engine load as well. Positive values will advance timing by that amount, negative values will retard timing by that amount. Up to 3D mapping is available with this table. (Default = Enabled)
