Per Cylinder Correction

Per Cylinder Correction


Cylinder Correction

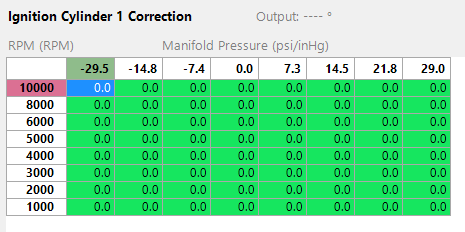

Degree amount correction tables for each cylinder. This option is only available if the Trigger type supports full 720 degree engine synchronisation and Per Cylinder control. Enabling this option will give the user access to individual tables for each cylinder. Up to 3D mapping can be used with these tables. (Default = Disabled)
