Fuel Composition Correction

Fuel Composition Timing Correction

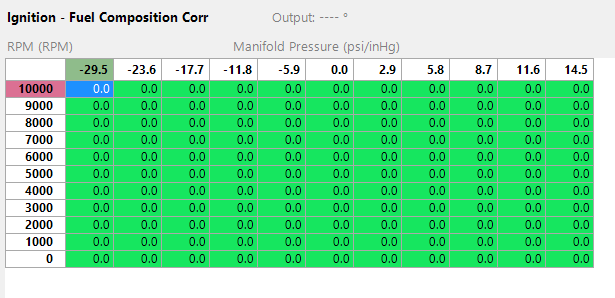

A degree amount correction table that allows for adjustment of ignition advance. Only used when a Flex Fuel Composition Sensor is connected. (Default = Disabled)

Timing corrections inputted to this table are what you would use with the maximum ethanol content fuel you will ever use.

The Fuel Composition Scaler Table varies the level of table blending based on fuel composition where a Flex Fuel Composition Sensor is used.
